10 Pack McCallum Aluminium Door and Window Hinge Satin A46A
A146

• 10 x Hinge

Application:

• Aluminium doors and windows to aluminium frames

Specifications:

• Alloy: High strength T.6 minimum tensile 254 mpa
• Pin Dia: 4mm stainless steel with machined chamfer both ends
• Bushes: Flanged nylon
• Knuckle: Round
• Aluminium Endcaps: Pressed-in interference fit

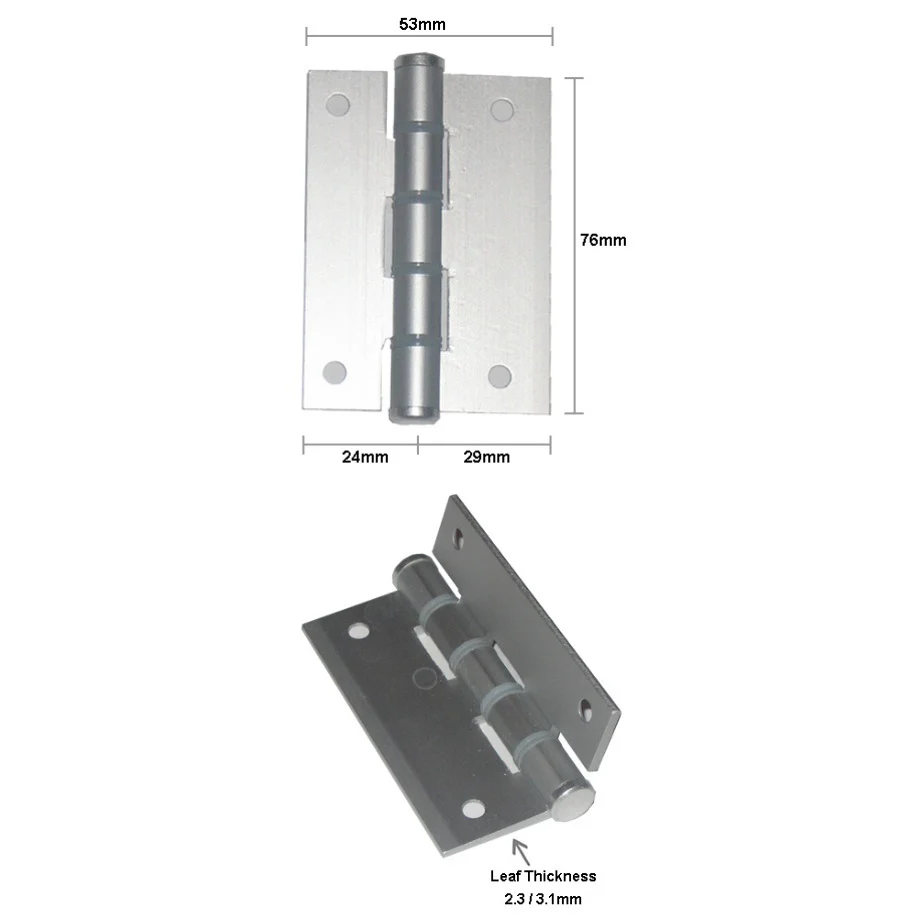

• Size: 76mm

Fixing:

• Fastening screws not supplied
• 8 gauge stainless steel screws
• Pop rivets are not recommended

Finish:

• SNA - Satin Natural Anodised
