10 Pack McCallum Stainless Steel Ball Bearing Butt Hinge Satin
S254

• 10 x Hinge

Application:

• Suitable for aluminium and timber doors with aluminium, steel and timber frames

Specifications:

• Material: Stainless Steel 316 Grade
• Pin Dia: 6.9mm - Stainless Steel 316 Grade
• Knuckle: Round Endcaps: Pressed-in interference fit
• Stainless Steel 316 Grade
• Stamped with McCallum crest
• Fixed Pin
• Bearings: 2 Stainless Steel Off-Cage Ball Bearings

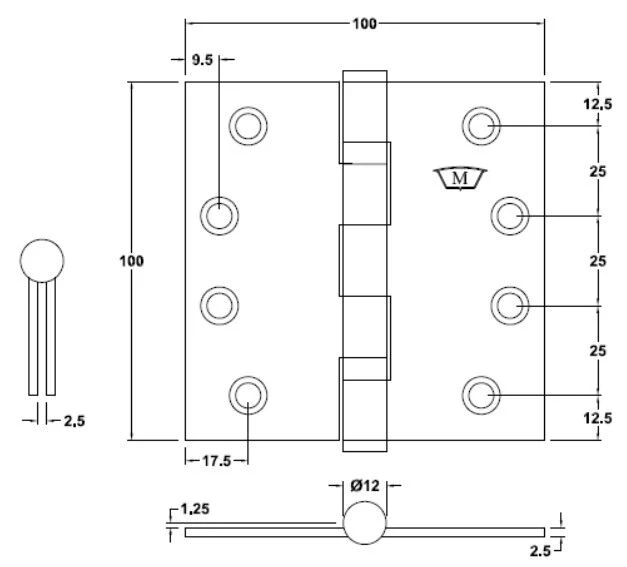

• Dimensions: 100mm x 100mm

Installation Guide Only

• Door thickness: Minimum 35mm
• When using a door closer, we recommend a minimum of 4 hinges be used, with the top hinge located as high as possible
• Standard Door: 2040 (H) x 820 (W) - 3 hinges

Fixing:

• 32mm x 10g stainless steel fasteners for timber (supplied)
• 12mm x M5 stainless steel metal fasteners (supplied)
• Pop rivets are not recommended
• Not recommended for Bi-Fold door systems

Finish:

• Satin finish
