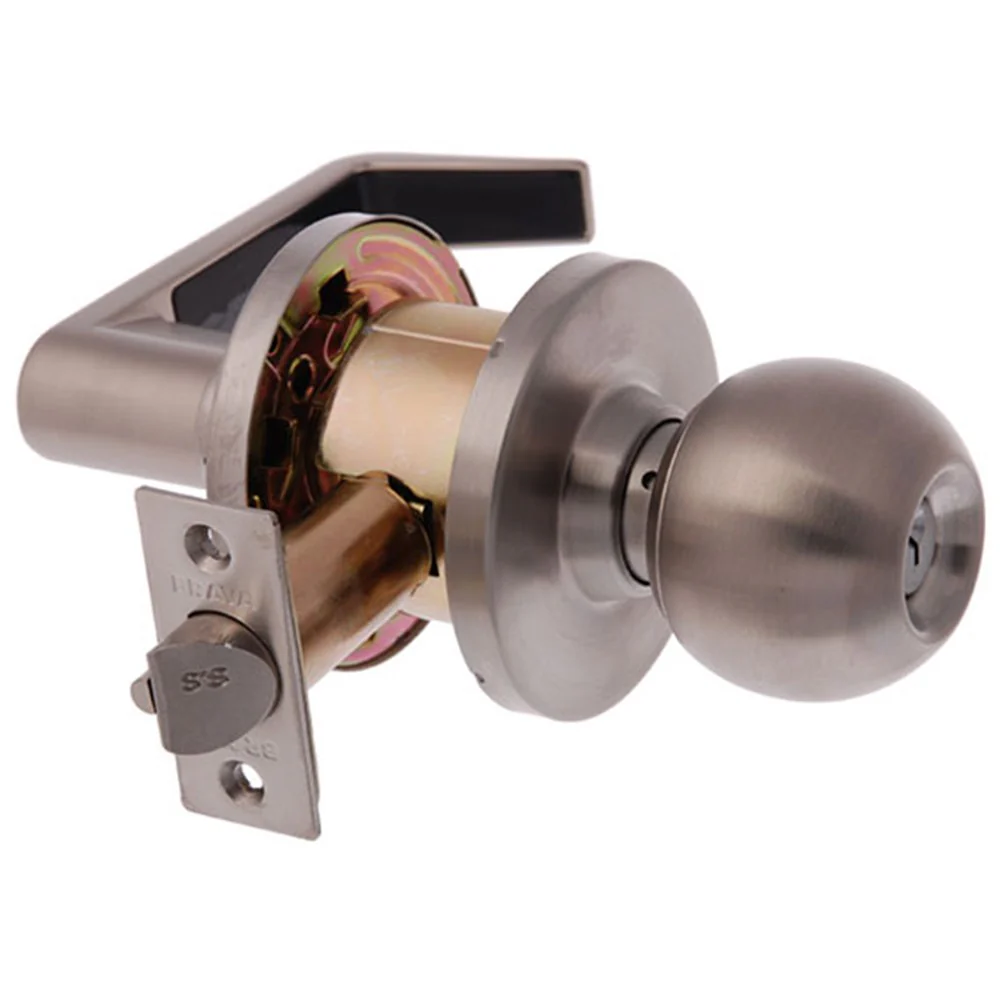

BRAVA Metro Storeroom Lockset with Knob/Lever
LSCEL3062SC70

Storeroom Set is used for storage doors where outside door entry should always stay locked unless opened with a key.

Storeroom Set Function - Opened by key only. Outside knob always rigid, key retracts the latch. Inside Opened by knob at all time.

Features:

• Cylindrical fixing
• External spherical knob
• Internal lever
• Anti-rotation fixing points
• Silca LW5 profile 6 pin cylinder
• Incorporates the popular PD 8221 barrel
• Compatible with most restricted keying systems
• 2 keys supplied
• Fire rated

Specifications:

• Door thickness: 35-45mm
• Backset: 70mm
• Strike: 70mm x 28mm x 2mm
• Latch: 70mm
• Latch Face Plate: 57mm x 25mm
• Rose : 75mm
• Finish: Satin Chrome

Ratings/Compliant:

• AS1428.1 – 2009 compliant internal lever ONLY. Check with your certifier for compliance.
• Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
