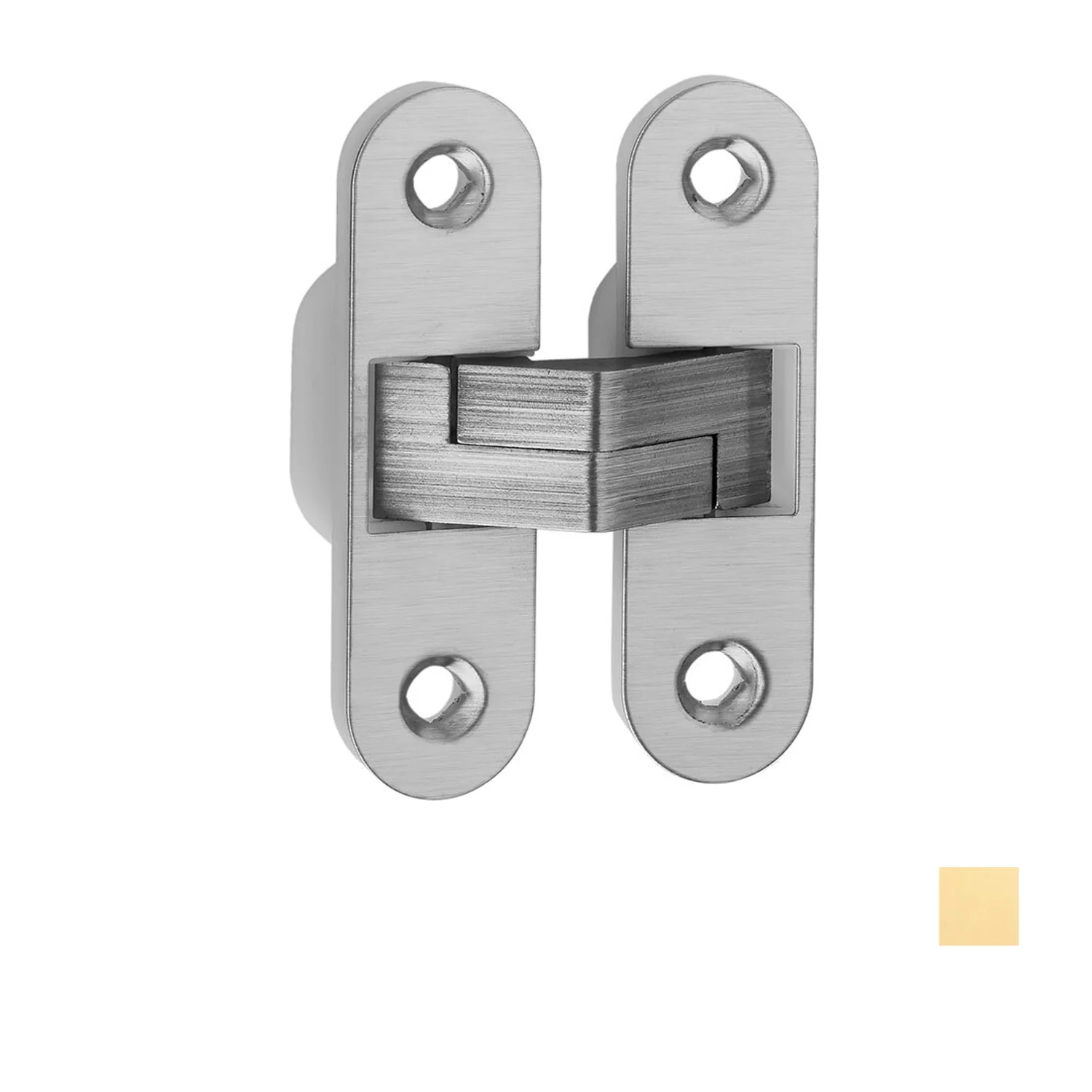

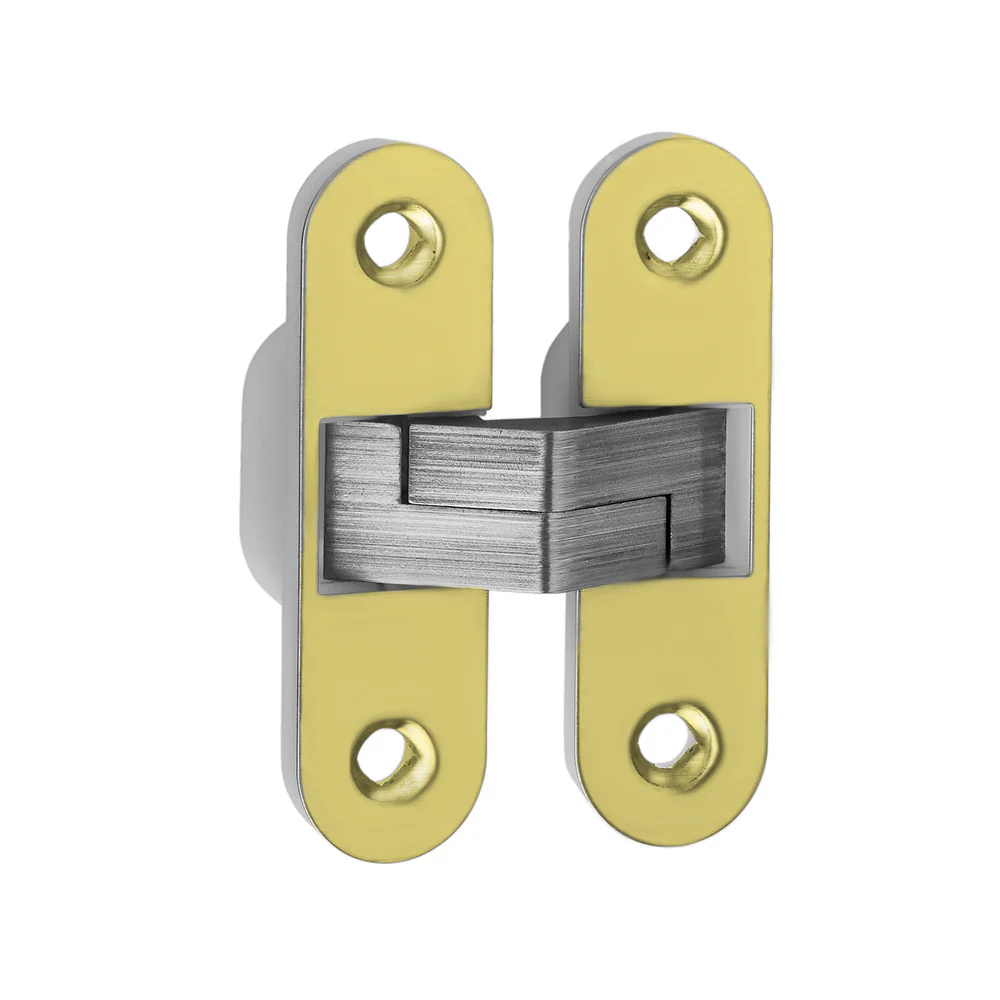

Bellevue Ceam Invisible Concealed Door Hinge 60kg BAC2010 - Available in Various Finishes

Product image 1
1 / 4

Bellevue Ceam Invisible Concealed Door Hinge 60kg BAC2010 - Available in Various Finishes

Bellevue Ceam Invisible Concealed Door Hinge
BAC2010

Ceam 3D Invisible Concealed Door Hinge is commonly used in residential homes, offices, hotels, and other architectural projects where a sleek and unobtrusive appearance is desired.

Ceam 3D Invisible Concealed Door Hinge Function - recessed into the door and door frame, so when the door is closed, the hinge is completely concealed. This creates a seamless and streamlined appearance without visible hardware.

Features:

  • Manufactured in industrial nylon and stainless steel AISI 304L
  • 100% made in Italy for over 50 years
  • Router template available for easy installation and slot symmetry
  • Suitable for internal and external (under cover) locations
  • Suitable for residential, commercial and industrial locations

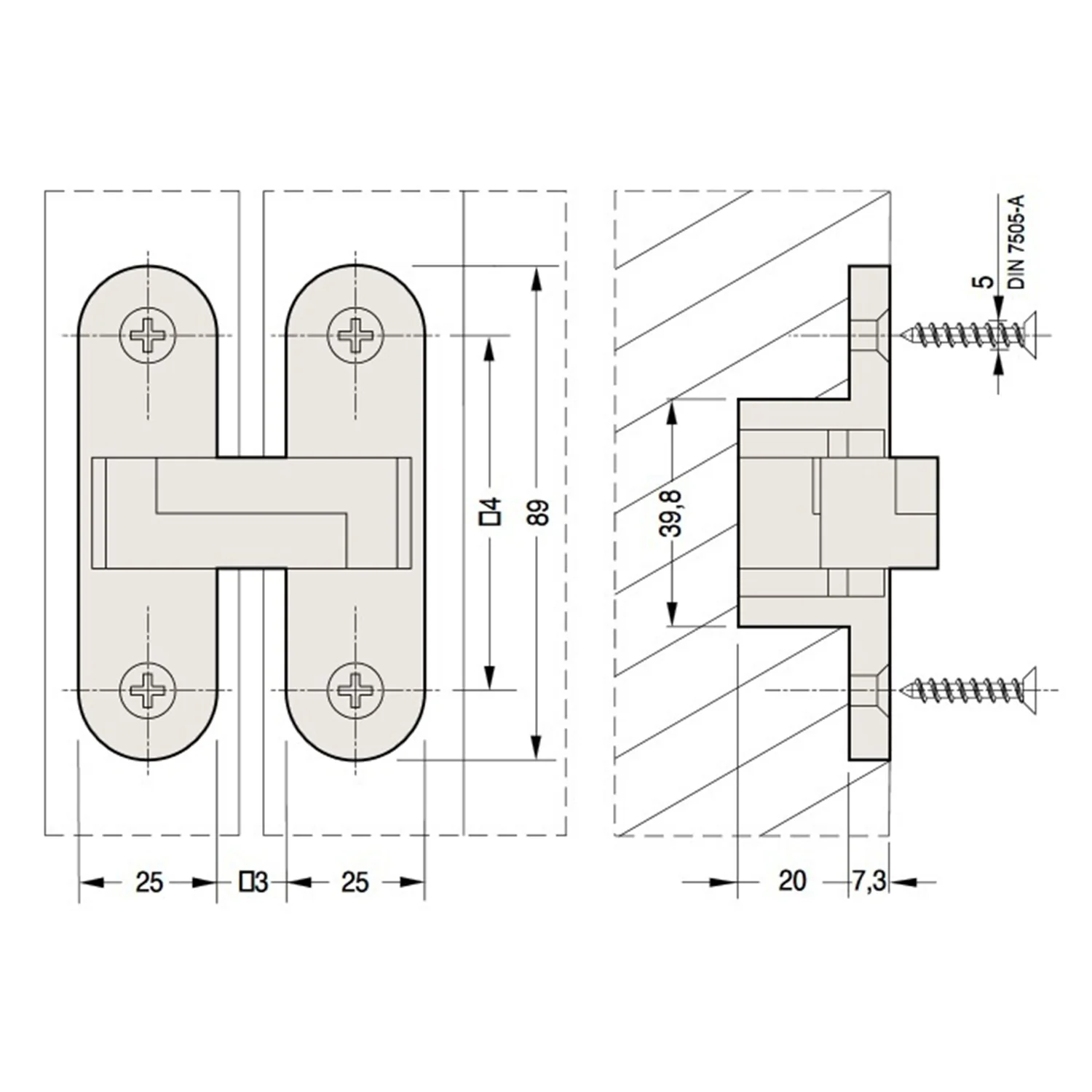

Specifications:

  • Length: 89mm
  • Depth: 27.5mm
  • Minimum Door Thickness:: 31mm
  • Suitable For Doors: Wood, Aluminum, Steel
  • 3D Adjustable: No
  • Load Capacity: Up to 60 kg @ 850mm wide door
    • 2 Hinges = 40 Kg. Max
    • 3 Hinges = 60 Kg. Max
    • 4 Hinges = 60 Kg. Max 2100mm + High
  • Available Finish:
    • Stainless Steel
    • Polished Brass
  • Sold as Single

Note: This product does not ship to New Zealand.

Bellevue Ceam Invisible Concealed Door Hinge
BAC2010

Ceam 3D Invisible Concealed Door Hinge is commonly used in residential homes, offices, hotels, and other architectural projects where a sleek and unobtrusive appearance is desired.

Ceam 3D Invisible Concealed Door Hinge Function - recessed into the door and door frame, so when the door is closed, the hinge is completely concealed. This creates a seamless and streamlined appearance without visible hardware.

Features:

  • Manufactured in industrial nylon and stainless steel AISI 304L
  • 100% made in Italy for over 50 years
  • Router template available for easy installation and slot symmetry
  • Suitable for internal and external (under cover) locations
  • Suitable for residential, commercial and industrial locations

Specifications:

  • Length: 89mm
  • Depth: 27.5mm
  • Minimum Door Thickness:: 31mm
  • Suitable For Doors: Wood, Aluminum, Steel
  • 3D Adjustable: No
  • Load Capacity: Up to 60 kg @ 850mm wide door
    • 2 Hinges = 40 Kg. Max
    • 3 Hinges = 60 Kg. Max
    • 4 Hinges = 60 Kg. Max 2100mm + High
  • Available Finish:
    • Stainless Steel
    • Polished Brass
  • Sold as Single

Note: This product does not ship to New Zealand.

Select Colour or Finish
From $8.11

Original: $27.03

-70%
Bellevue Ceam Invisible Concealed Door Hinge 60kg BAC2010 - Available in Various Finishes—

$27.03

$8.11

Description

Bellevue Ceam Invisible Concealed Door Hinge
BAC2010

Ceam 3D Invisible Concealed Door Hinge is commonly used in residential homes, offices, hotels, and other architectural projects where a sleek and unobtrusive appearance is desired.

Ceam 3D Invisible Concealed Door Hinge Function - recessed into the door and door frame, so when the door is closed, the hinge is completely concealed. This creates a seamless and streamlined appearance without visible hardware.

Features:

  • Manufactured in industrial nylon and stainless steel AISI 304L
  • 100% made in Italy for over 50 years
  • Router template available for easy installation and slot symmetry
  • Suitable for internal and external (under cover) locations
  • Suitable for residential, commercial and industrial locations

Specifications:

  • Length: 89mm
  • Depth: 27.5mm
  • Minimum Door Thickness:: 31mm
  • Suitable For Doors: Wood, Aluminum, Steel
  • 3D Adjustable: No
  • Load Capacity: Up to 60 kg @ 850mm wide door
    • 2 Hinges = 40 Kg. Max
    • 3 Hinges = 60 Kg. Max
    • 4 Hinges = 60 Kg. Max 2100mm + High
  • Available Finish:
    • Stainless Steel
    • Polished Brass
  • Sold as Single

Note: This product does not ship to New Zealand.
