Brava Metro Passage Knob Set RA3182PB Fire Rated Tiebolt 60/70mm Adjustable PB
Brava Metro Passage Knob Set
RA3182PB
BRAVA Metro RA3000 series commercial grade tiebolt 60-70mm passage knobset.
Passage function:
- Both outside and inside knobs are always free.
Additional info:
- Cylindrical fixing.
- Boxed and colour coded.
- Finished in polished brass.

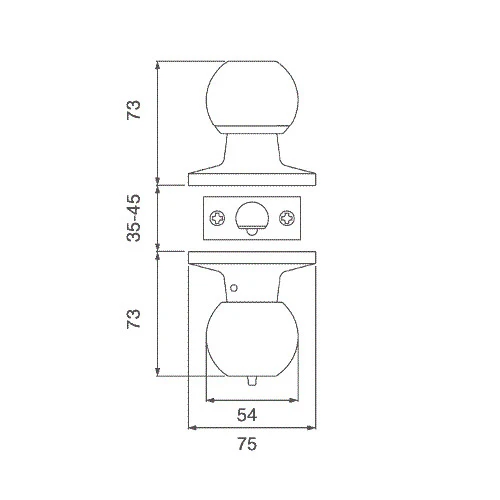

Features:
- Door thickness: 35-45mm
- Backset: 60/70mm adjustable latch
- Max. knob projection: 73mm (distance may not include turnsnib)
- Strike: 70mm x 28mm x 2mm
- Latch: 60/70mm adjustable
- Latch face plate: 57mm x 25mm
- Door handing: Non-handed knobs
- Rose: 75mm
Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
