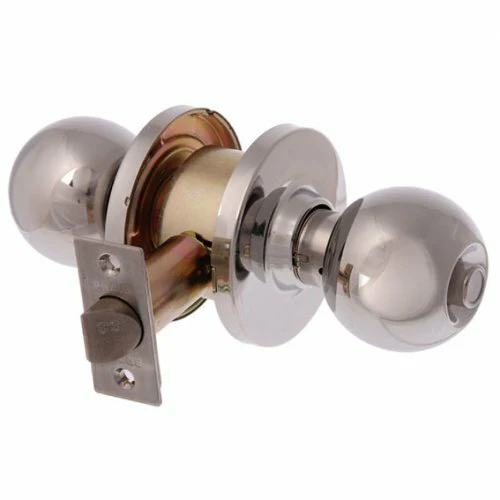

Brava Metro Privacy Knob Set EA3830PSS70 Fire Rated 70mm Polished SS
Brava Metro Privacy Knob Set
EA3830PSS70
BRAVA Metro EA3000 series commercial grade privacy knobset 70mm backset.
Privacy function:
- Outside opened by knob when free.
- Can be unlocked in an emergency situation with a coin or screw driver.
- Inside opened by knob at all times, external knob locked with push button from inside.
Additional info:
- Automatic kick off.
- Cylindrical fixing.
- Boxed and colour coded.
- Fire rated.
- Finished in polished stainless steel.
Features:
- Door thickness: 35-45mm
- Backset: 70mm
- Max. knob projection: 69.5mm (distance may not include turnsnib)
- Strike: 70mm x 27mm x 1.2mm
- Latch: 70mm backset
- Latch face plate: 57mm x 25mm
- Door handing: Non-handed knobs
- Rose: 75mm
Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
