Dormakaba En1-5 Cam Action Door Closer Pull Side Black with Arm Fire Rated TS93B 43090519

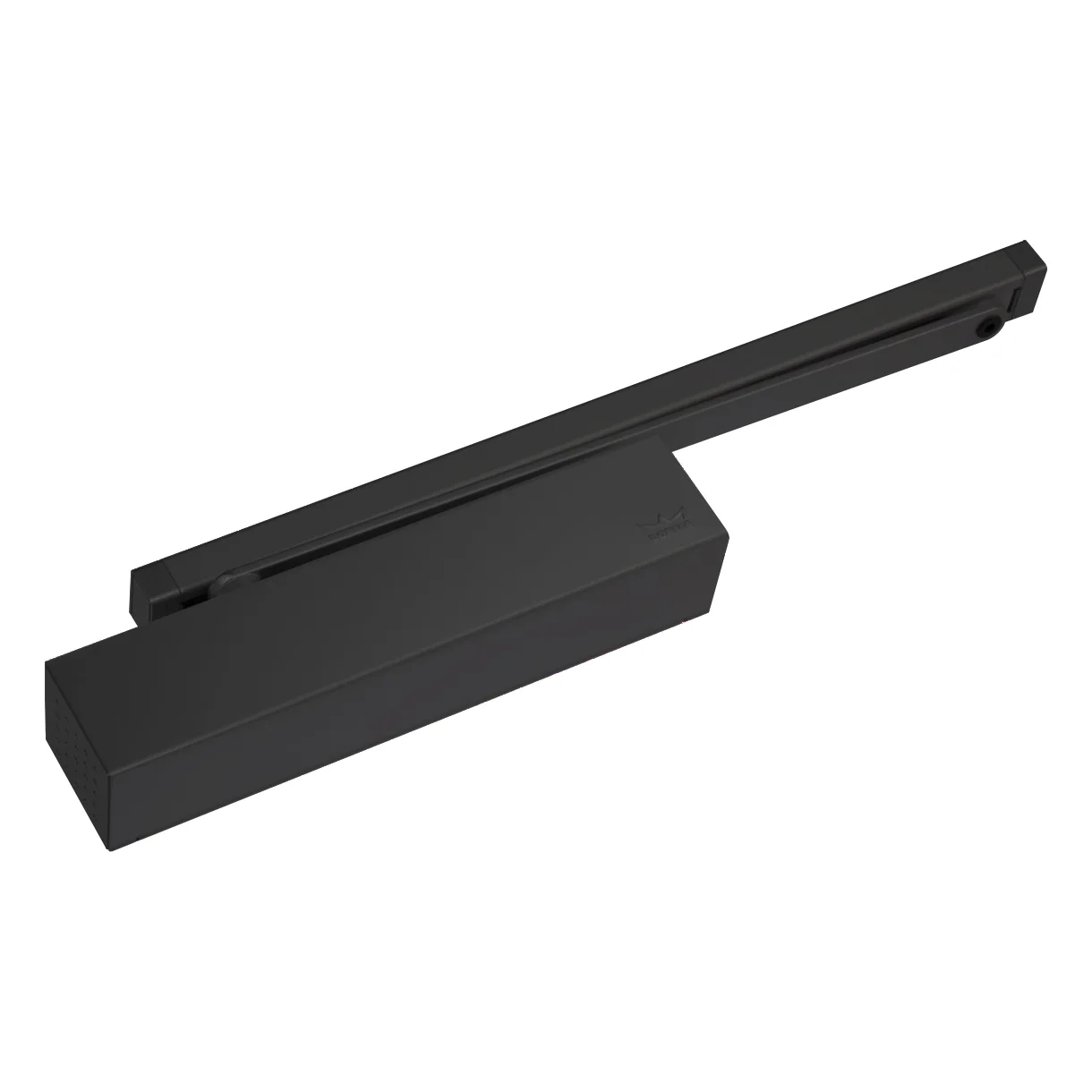

Product image 1
1 / 2

Dormakaba En1-5 Cam Action Door Closer Pull Side Black with Arm Fire Rated TS93B 43090519

Dormakaba Door Closer TS93B EN1-5 Pull Side with Arm Fire Rated
43090519

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Features:

  • Standard model for pull-side door leaf fixing/push-side transom fixing
  • Suitable for fire and smoke check doors where the cushioned limit stay is also used
  • Suitable for single and double doors installation up to 1250 mm (W)
  • For fire and smoke check doors
  • Handed design
  • Slide Channel
  • Closing force variable by means of adjustment screw
  • Latching and closing speed adjustable by valve

Technical Specifications

  • Adjustable Closing Speed: Yes
  • Adjustable Latching Speed: Yes
  • Backcheck: Yes
  • Delay Action: Yes
  • Holdopen: No
  • Slide Arm: Yes
  • Spring Strength: EN1-5
  • Suits Pull Side Of Door: Yes
  • Fire Rated (FIRERATED): Yes

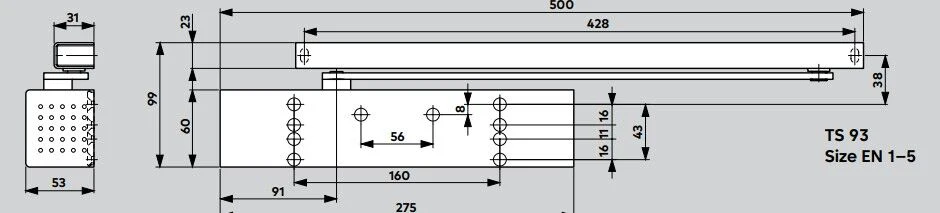

  • Length: 275mm
  • Overall depth: 53mm
  • Height: 60mm
  • Finish: Black

Dormakaba Door Closer TS93B EN1-5 Pull Side with Arm Fire Rated
43090519

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Features:

  • Standard model for pull-side door leaf fixing/push-side transom fixing
  • Suitable for fire and smoke check doors where the cushioned limit stay is also used
  • Suitable for single and double doors installation up to 1250 mm (W)
  • For fire and smoke check doors
  • Handed design
  • Slide Channel
  • Closing force variable by means of adjustment screw
  • Latching and closing speed adjustable by valve

Technical Specifications

  • Adjustable Closing Speed: Yes
  • Adjustable Latching Speed: Yes
  • Backcheck: Yes
  • Delay Action: Yes
  • Holdopen: No
  • Slide Arm: Yes
  • Spring Strength: EN1-5
  • Suits Pull Side Of Door: Yes
  • Fire Rated (FIRERATED): Yes
  • Length: 275mm
  • Overall depth: 53mm
  • Height: 60mm
  • Finish: Black
$132.28

Original: $440.92

-70%
Dormakaba En1-5 Cam Action Door Closer Pull Side Black with Arm Fire Rated TS93B 43090519—

$440.92

$132.28

Description

Dormakaba Door Closer TS93B EN1-5 Pull Side with Arm Fire Rated
43090519

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Features:

  • Standard model for pull-side door leaf fixing/push-side transom fixing
  • Suitable for fire and smoke check doors where the cushioned limit stay is also used
  • Suitable for single and double doors installation up to 1250 mm (W)
  • For fire and smoke check doors
  • Handed design
  • Slide Channel
  • Closing force variable by means of adjustment screw
  • Latching and closing speed adjustable by valve

Technical Specifications

  • Adjustable Closing Speed: Yes
  • Adjustable Latching Speed: Yes
  • Backcheck: Yes
  • Delay Action: Yes
  • Holdopen: No
  • Slide Arm: Yes
  • Spring Strength: EN1-5
  • Suits Pull Side Of Door: Yes
  • Fire Rated (FIRERATED): Yes
  • Length: 275mm
  • Overall depth: 53mm
  • Height: 60mm
  • Finish: Black
