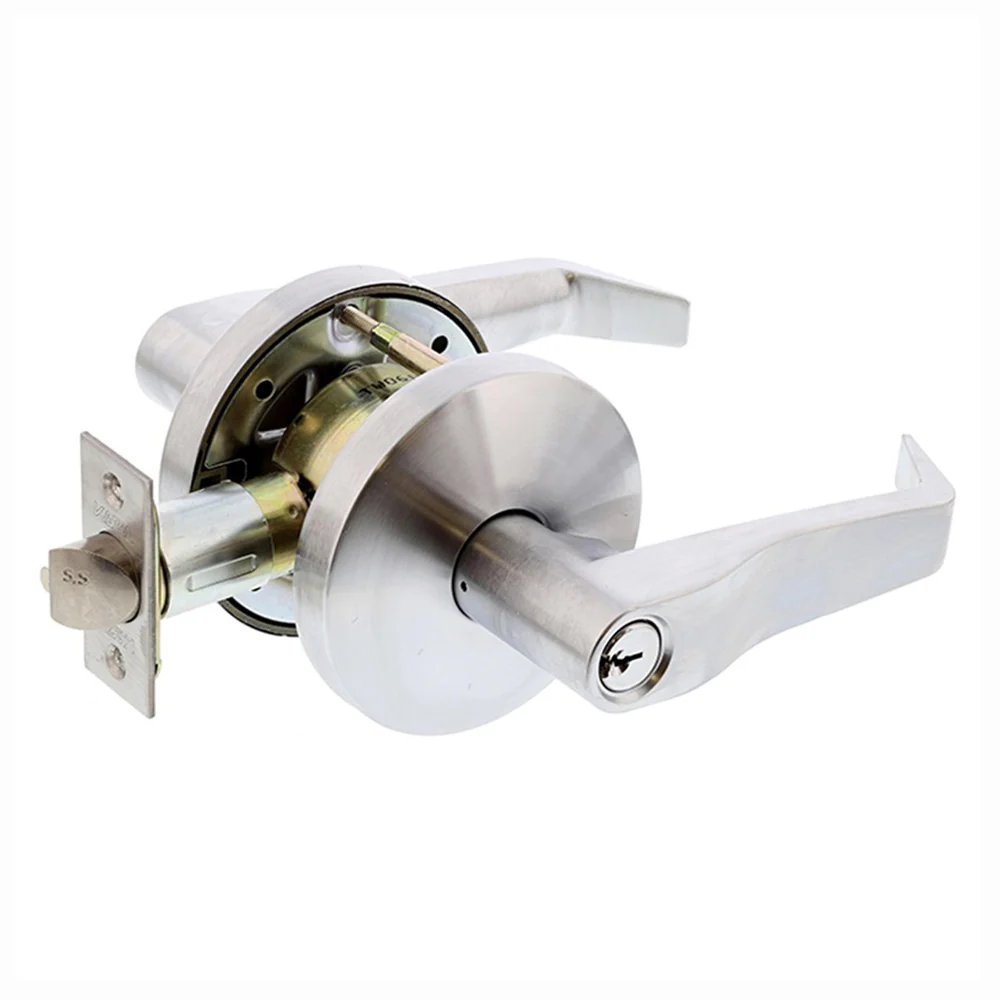

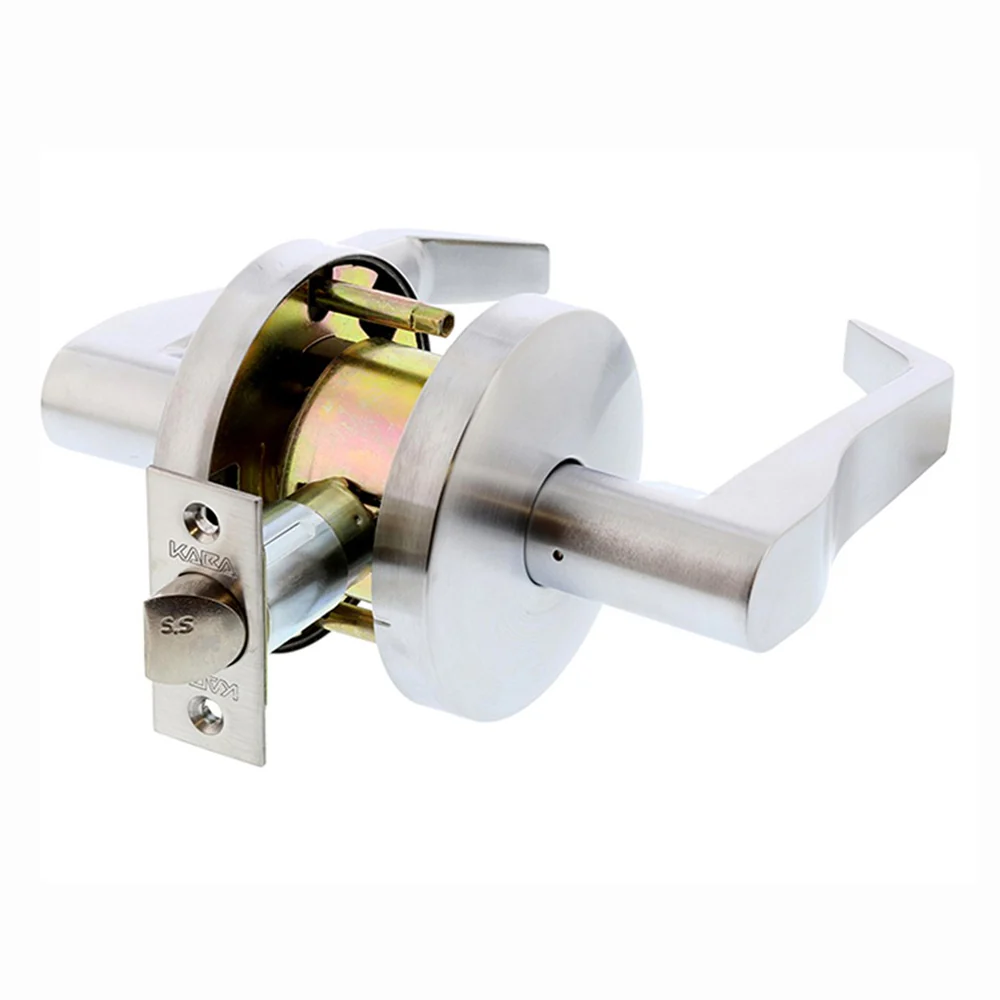

Dormakaba Door Lever Handle on Round Rose Fire Rated

Door Lever Functions:

• Entrance: Turn/push-button locking, pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Push-button locking: pushing button locks outside lever until unlocked by key or by turning inside lever
• Storeroom: Inside lever always unlocked. Outside lever fixed. Entrance by key only.
• Passage: Both levers always unlocked
• Privacy: Push-button locking locks outside lever. Turning inside lever releases button. Outside lever has emergency release.

Features:

• Dormakaba LC series commercial grade leverset
• Screw post to prevent lock rotation are removable
• DDA compliant lever design
• Cylindrical fixing
• Boxed and bar coded

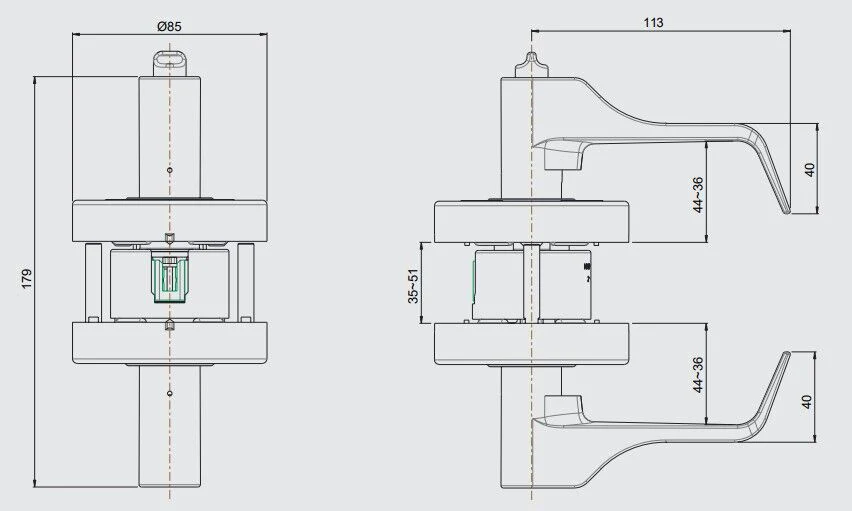

Specifications:

• Door Thickness: 35mm - 51mm
• Backset: 70mm
• Strike: 28mm x 70mm x 2mm
• Latch: 70 mm (12.7 mm throw)
• Latch Face Plate: 57mm x 25mm
• Door Handing: Non-handed levers
• Rose Diameter: 85mm
• Lock Grade: Commercial
• Lock Type: Cylindrical
• Fire Rated: Yes
• AS1428.1 Compliant Lever (AS1428.1CO): Yes
• Finish: Satin Chrome
