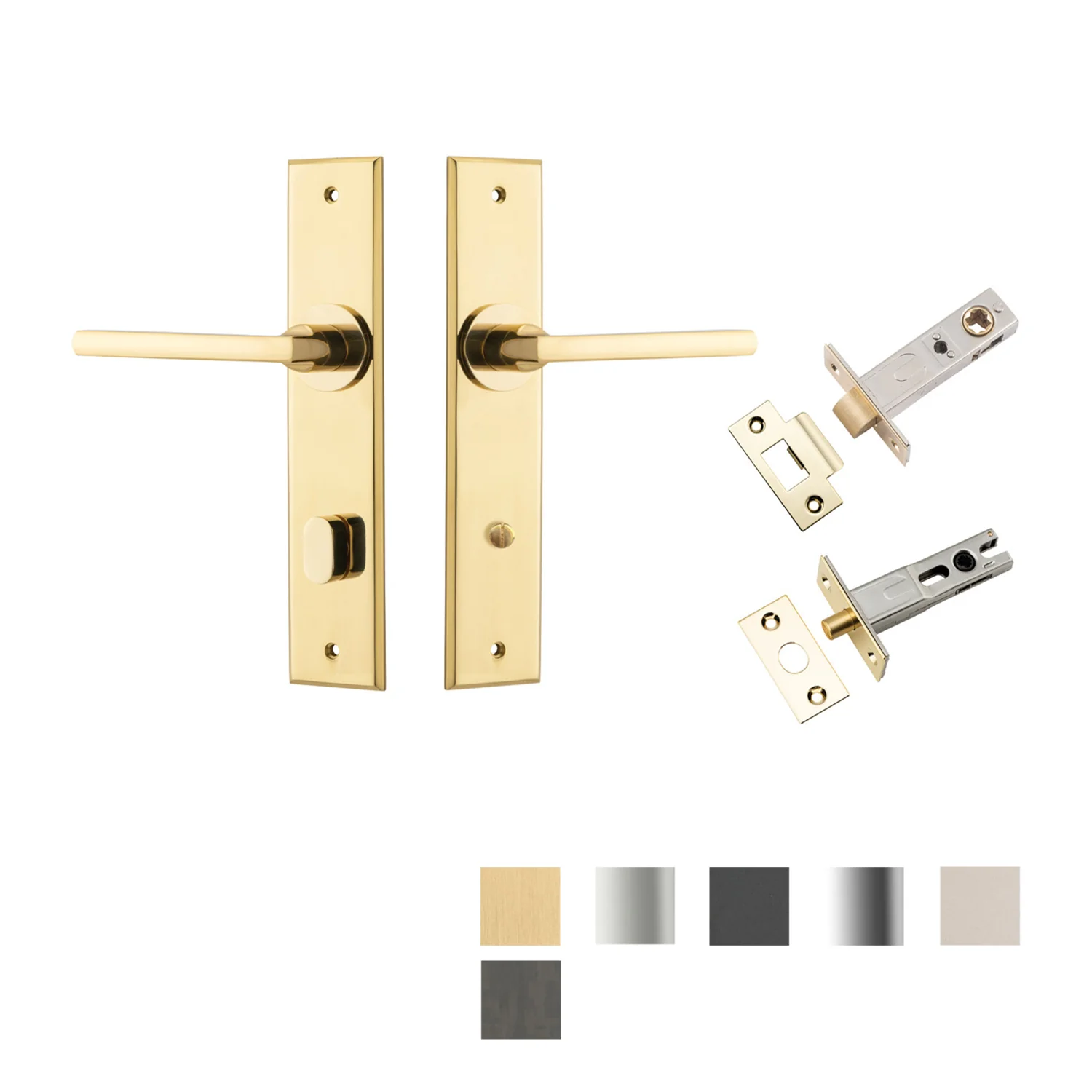

Iver Baltimore Door Lever on Chamfered Backplate Privacy Kit

Privacy is used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

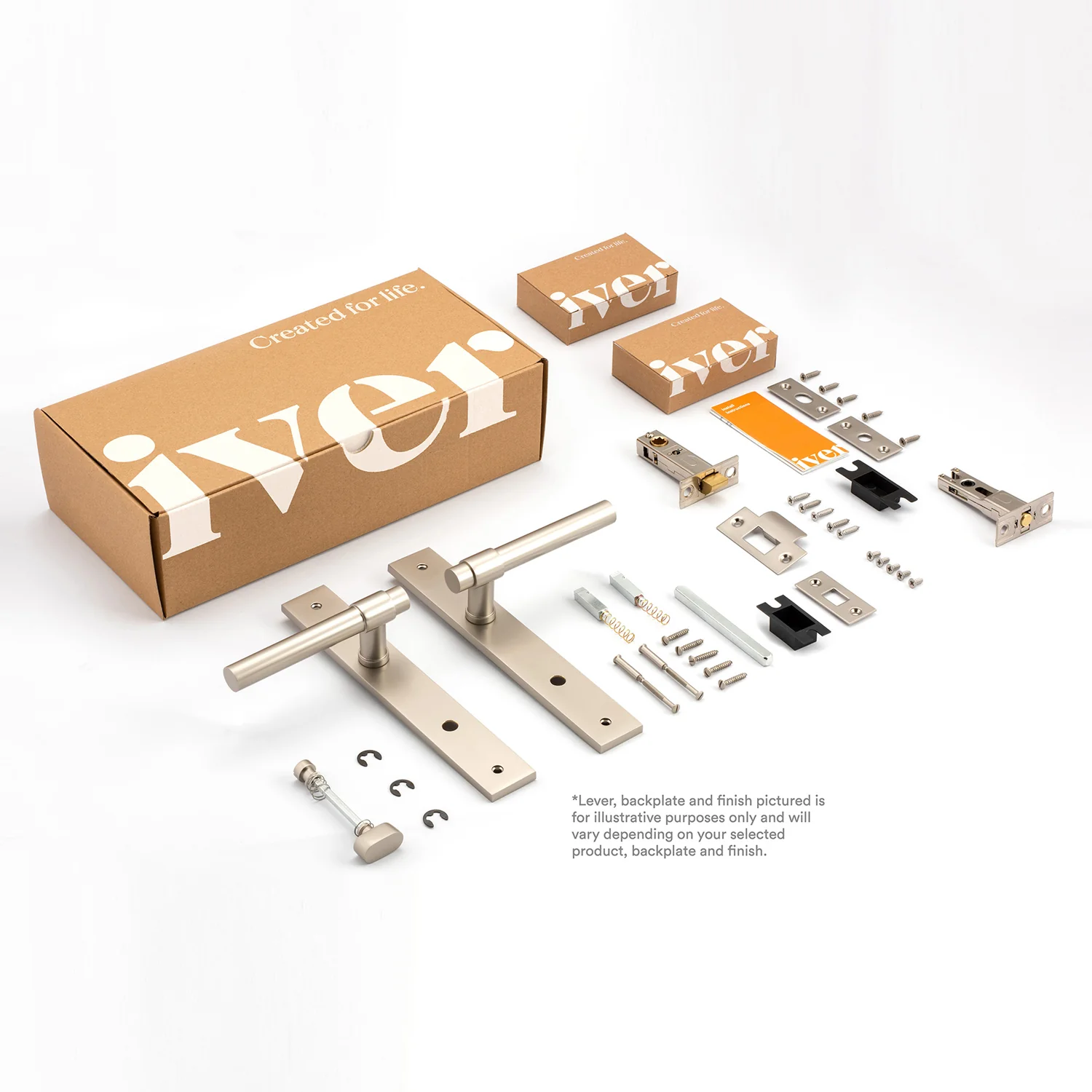

Includes:

• 2 x Baltimore Levers on Chamfered Backplate

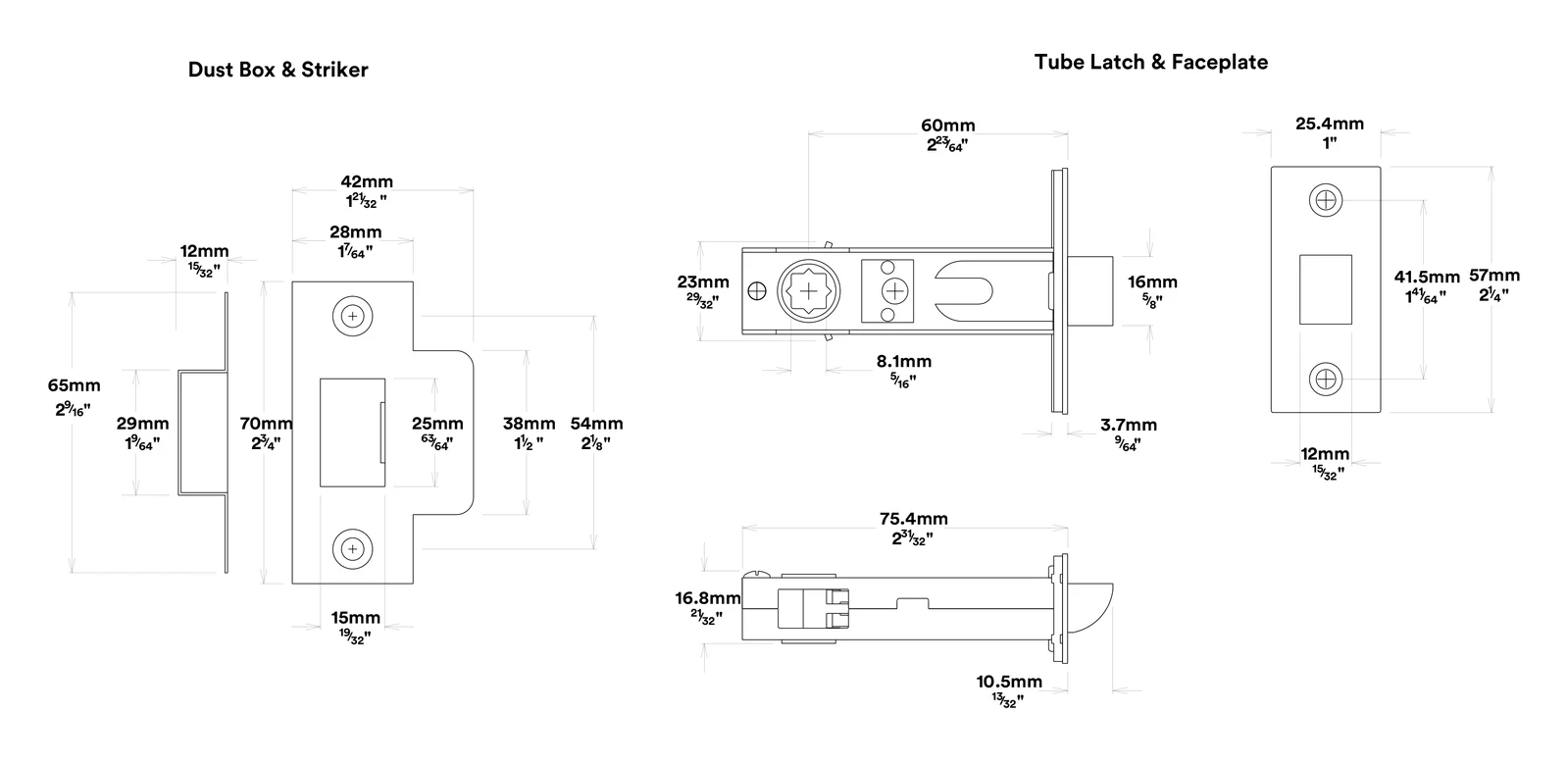

• 1 x Tube Latch Split Cam Backset 60mm
• 1 x Face Plate
• 1 x Striker Plate

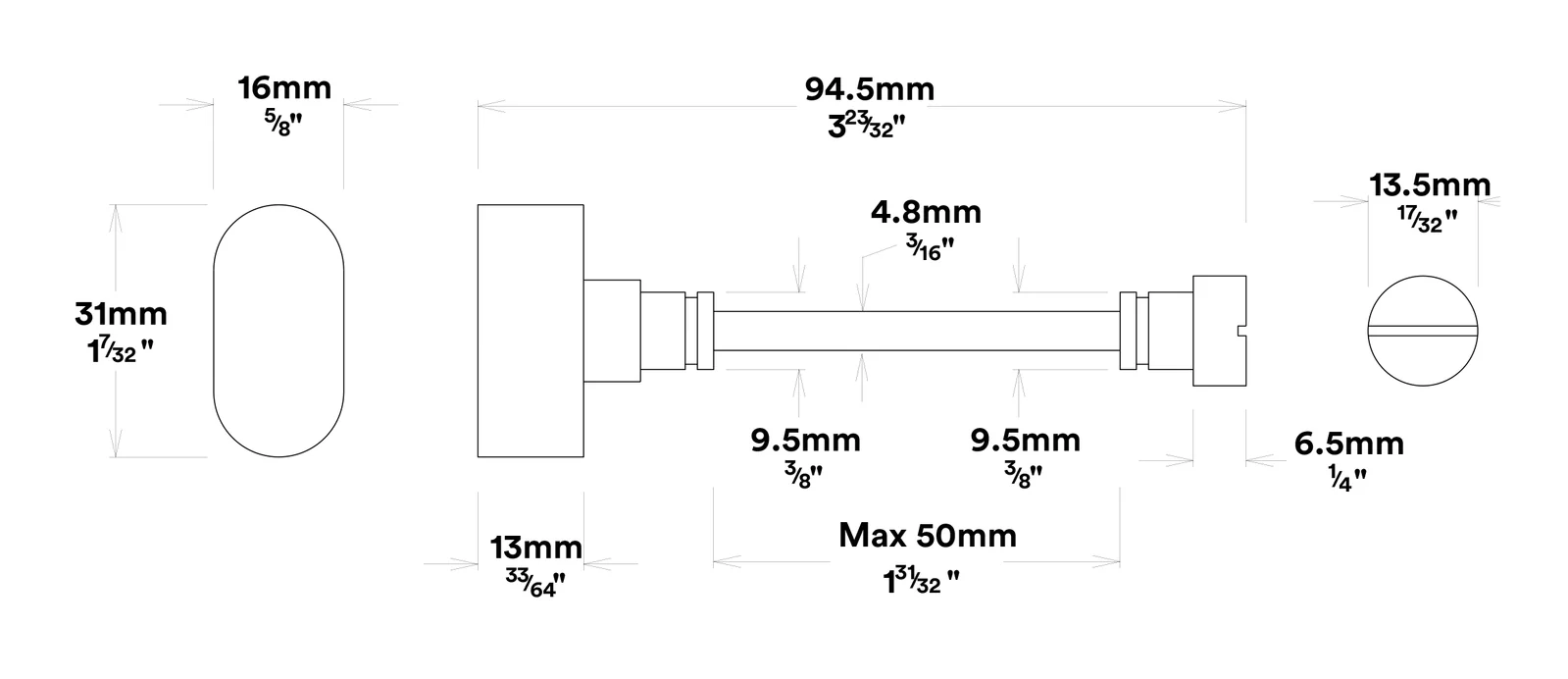

• 1 x Privacy Bolt Round Backset 60mm
• 20 x Screws
• 2 x Tie Bolts
• 1 x Standard Spindle
• 2 x Sprung Spindles
• 1 x Privacy Adaptor
• 2 x Dust Boxes
• 1 x Drill Template
• 1 x Instruction Manual

Features:

• Traditional French Provincial design, the Annecy pays homage to its namesake, while providing a universally refined choice
• A classic style with a slim rectangular handle and banded detail, the beauty of this lever is not bound by trends and will stand the test of time
• For internal doors where privacy is needed, including bathrooms, powder rooms, offices and bedrooms

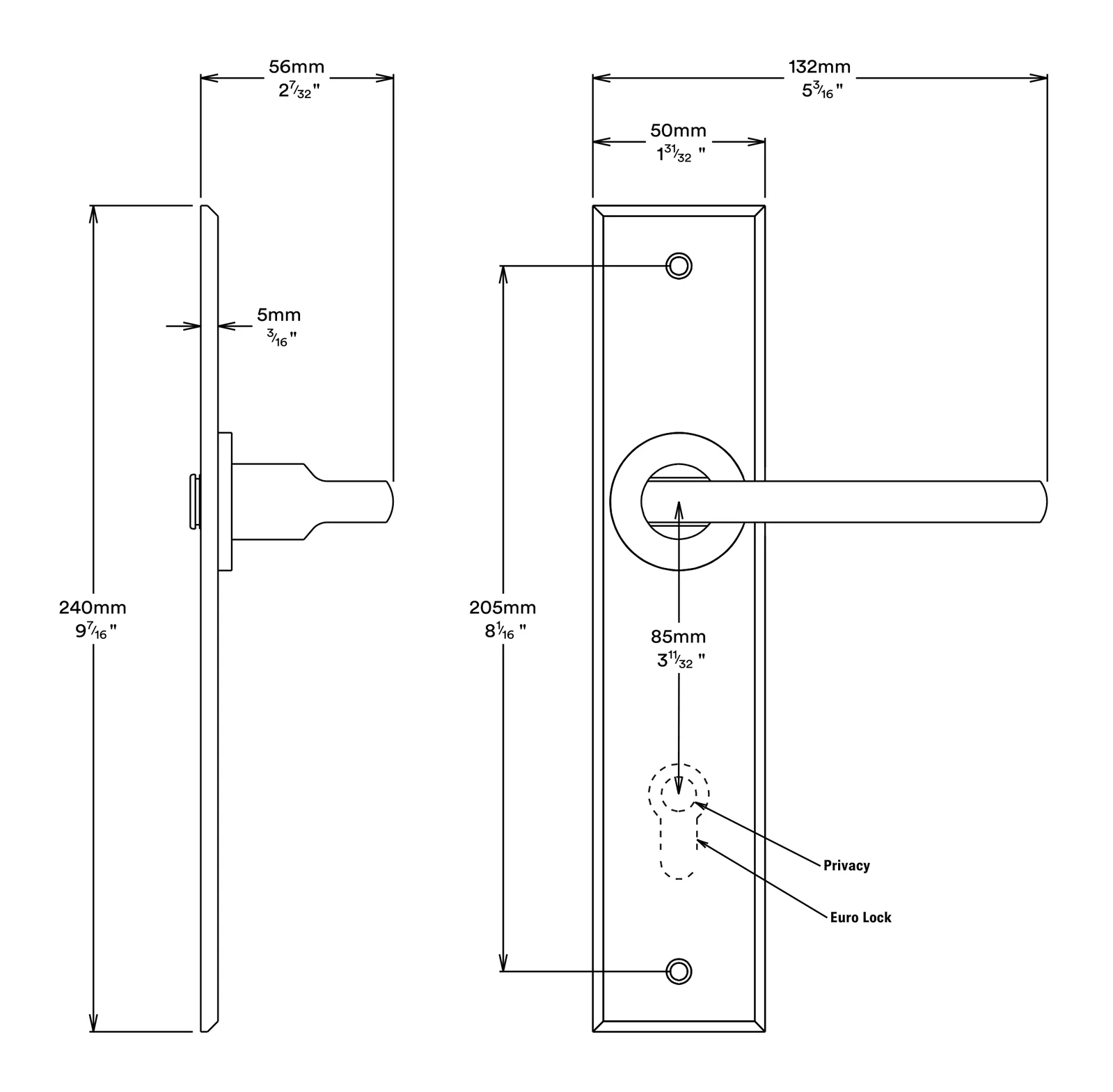

Specifications:

• Height: 240mm
• Width: 50mm
• Length: 118mm
• Projection: 56mm
• Centre to Centre: 205mm
• Available Finish:
  • Brushed Brass
  • Brushed Chrome
  • Matt Black
  • Polished Brass
  • Polished Chrome
  • Satin Nickel
  • Signature Brass

Notes:

• Levers and backplates have been successfully fire-rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014).
