Dormakaba Exit Door Pack

Includes:

• 1 x Dormakaba External Square End Plate with Cylinder Hole & 70 Lever Satin Stainless Steel (6600/70SSS)
• 1 x Dormakaba Exit Only Mortice Lock Fire Rated Satin Stainless Steel 1060mm (ED22MFSSS)

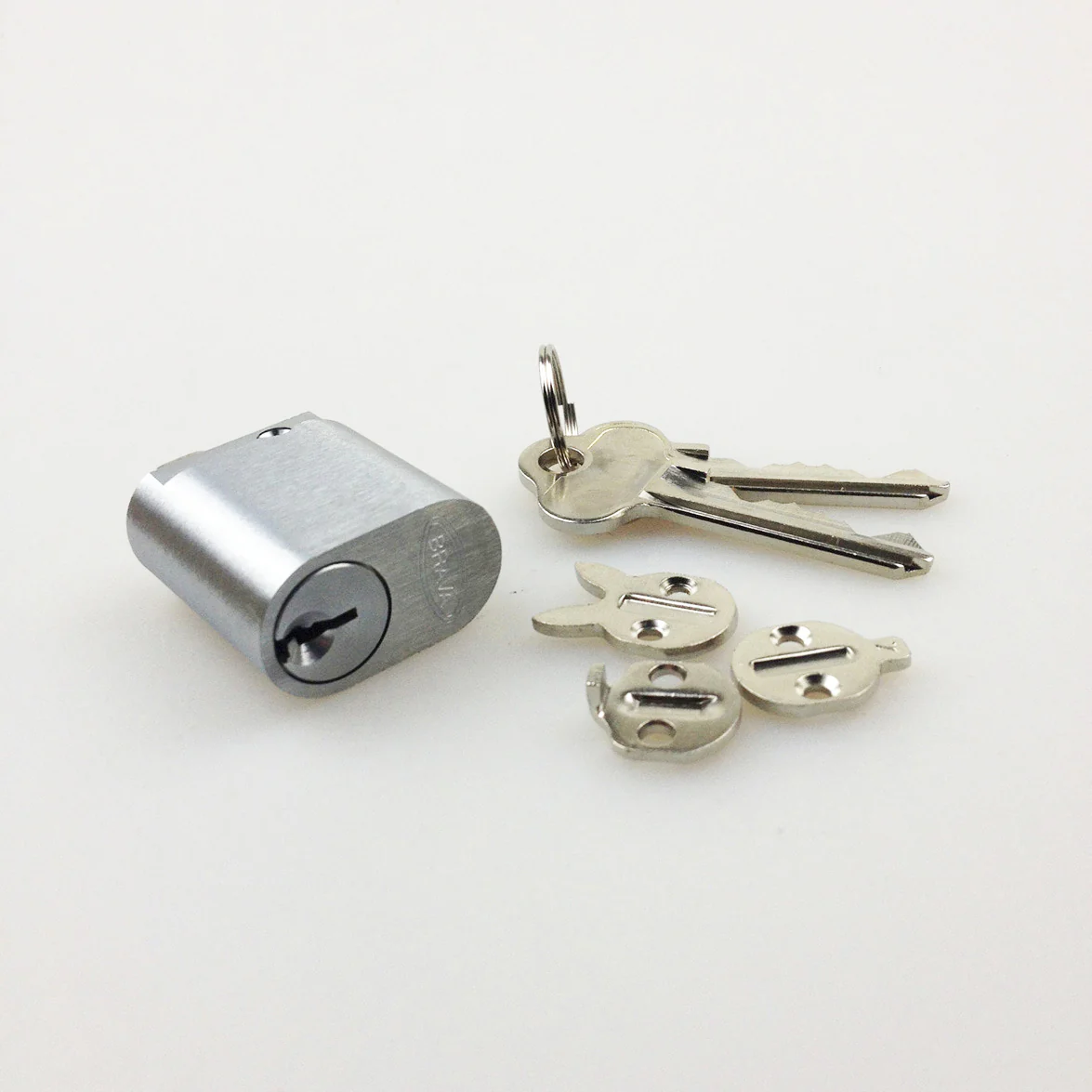

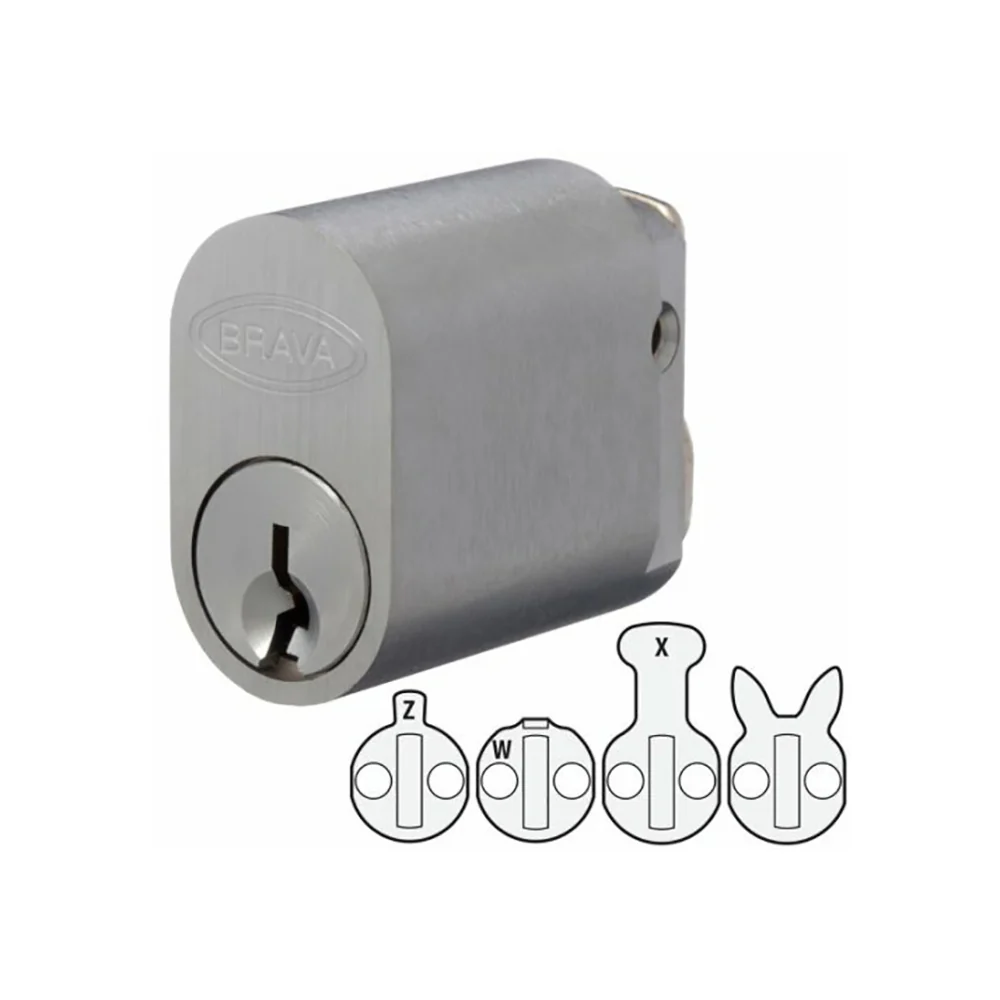

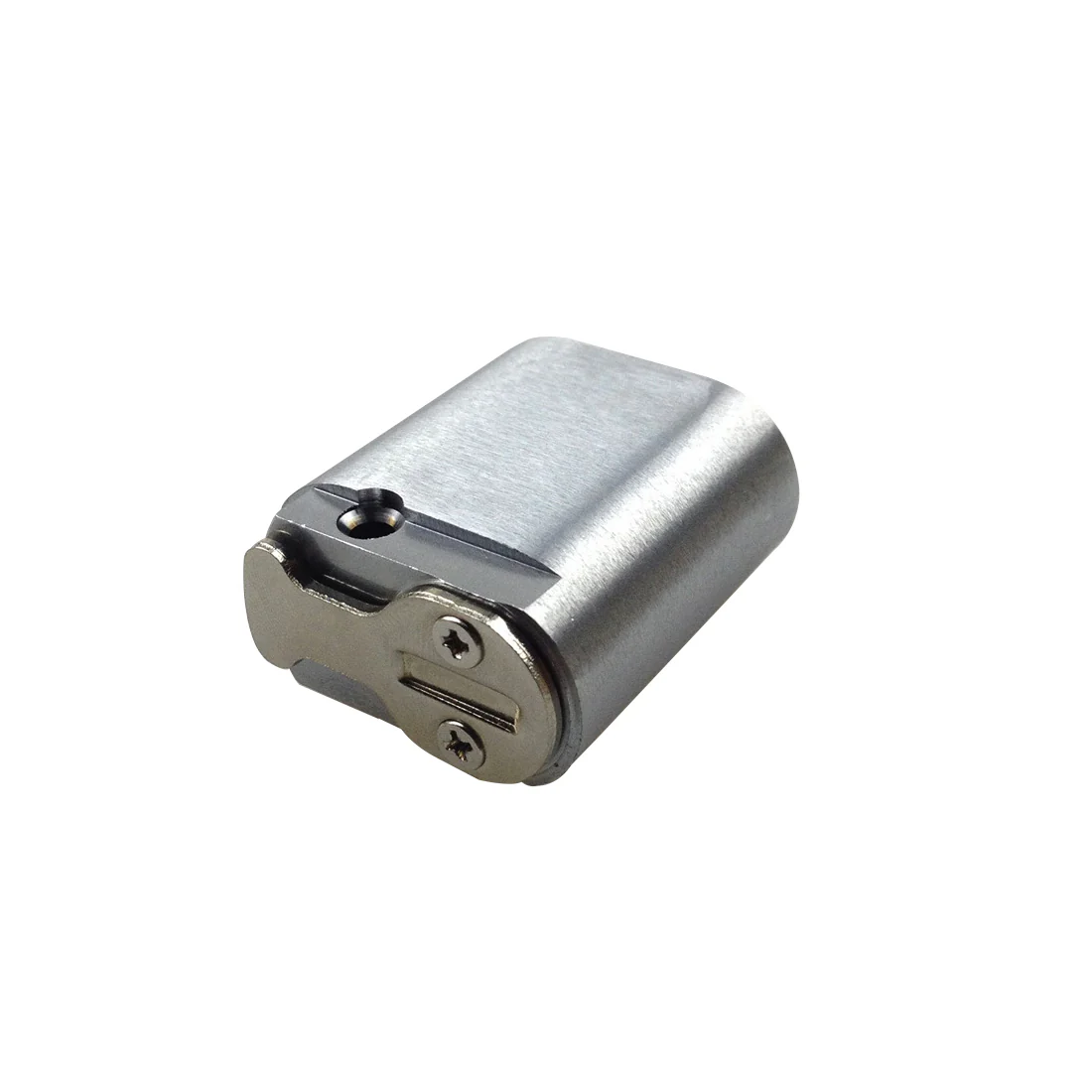

• 1 x Brava Oval Cylinder X W Z Rabbit Cams 6 Pin Keyed Differ Satin Chrome (5070USCKD)

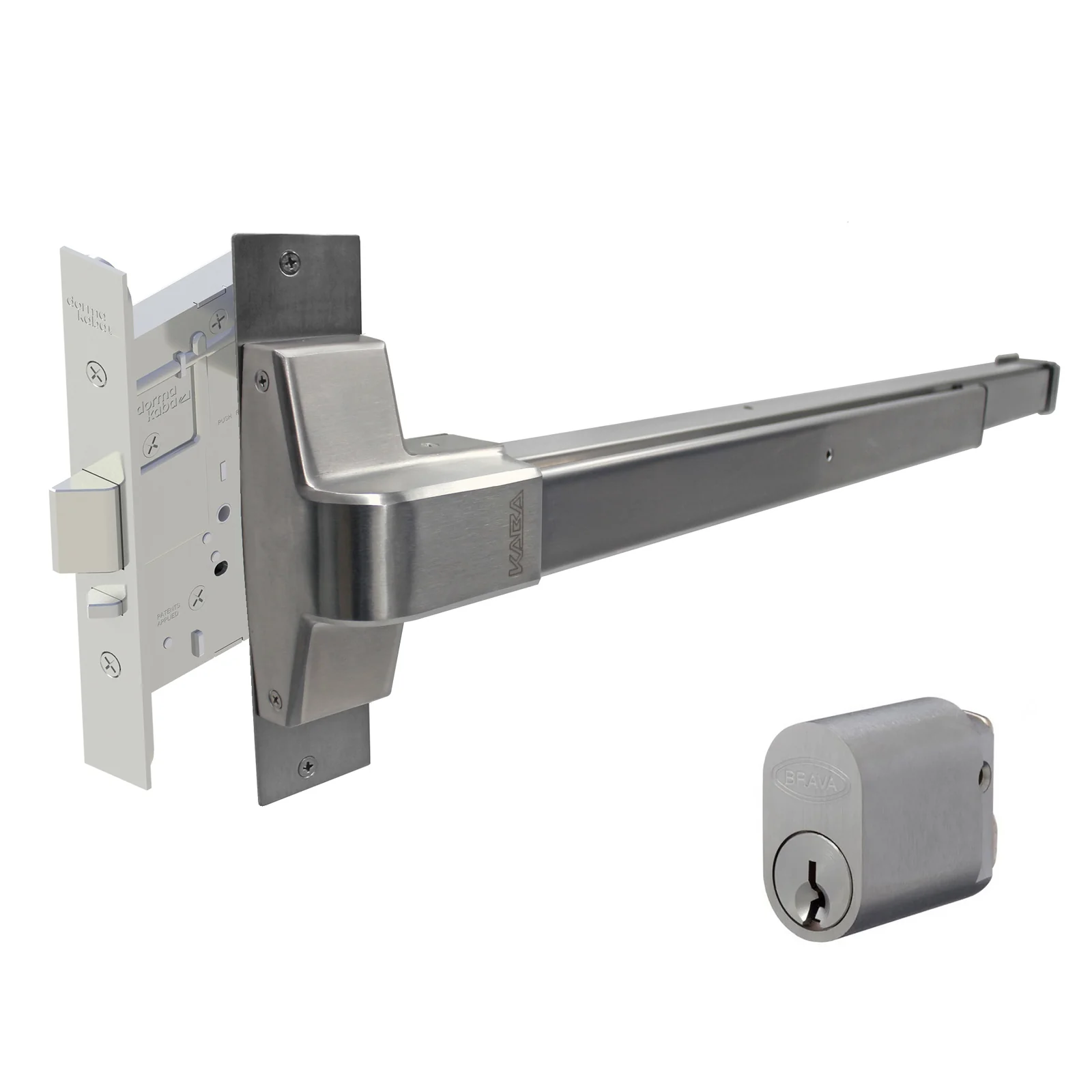

Dormakaba Exit Device Mortice Lock Fire Rated
ED22MFSSS

The Dormakaba ED22MFSSS has been designed to operate in conjunction with the renowned Kaba MS2 mortice lock.

The ED22MFSSS offers all the security functions of the MS2 mortice lock whilst providing a fast and convenient means of escape in the case of an emergency.

The exit device is supplied with convenient mounting plates, providing fast, secure and easy thru fixing to timber doors.

firerated-icon Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

Features:

• Horizontal fitting.
• Supplied in 1060 mm standard length.
• Can be field sized to 645 mm minimum length.
• Suits door thickness 35 - 50 mm as standard.
• Supplied complete with mortice lock (MS2ED).
• Mounting plates and thru fixing screws (supplied).
• Field selectable handing.
• Fire rated.
• Finished in stain stainless steel

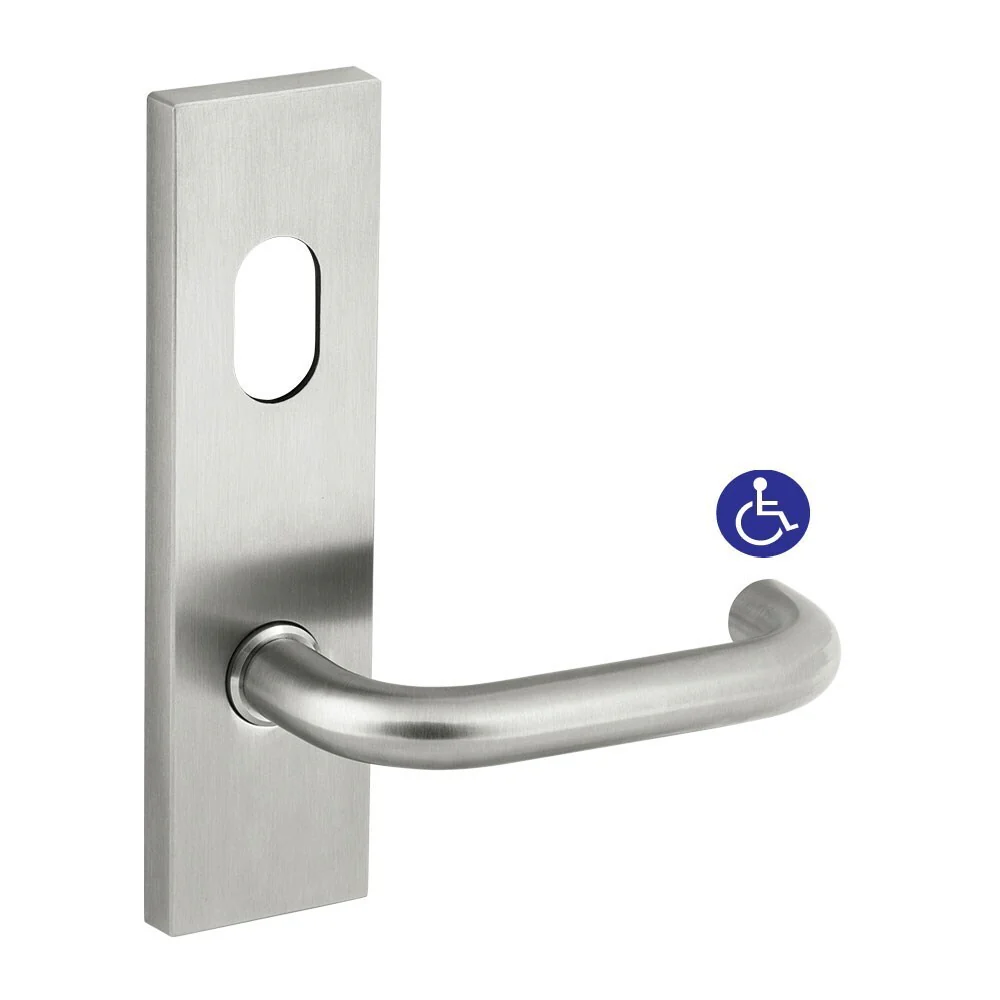

Dormakaba Lever on Square End Plate with Cylinder Hole
6600/70

Features:

• A true rectangular plate displaying clean modern lines with bevelled edges
• Manufactured using hygienic and corrosion resistant 316 solid stainless steel
•  A characteristic feature of stainless steel door furniture is the naturally gleaming finish
• Concealed fixed external plates with visible fixed internal plates connected with bolt through fixings
• Heavy duty spring mechanism manufactured using the highest grade materials

Specifications:

• Material: Stainless Steel
• Height: 165mm
• Length: 135mm
• Door Thickness: 35mm - 50mm
• Plate Width: 45mm
• Plate Height: 165mm
• Includes Fixing Screws: Yes
• AS1428.1 Compliant: Yes
• Fire Tested: Yes
• Suitable for Door Type: Timber Doors
• Cylinder Cut Out Profile: Oval
• Spindle Size: 7.6mm
• Fixing: Concealed Fixed
• Finger Clearance: 45mm
• Finish: Satin Stainless Steel

Ratings/Compliance:

• Fire Rating: The 6600 series plate furniture is fire rated and complies with AS1905.1-2005 Part 1.
