Kilargo Aluminium Meeting Style Seal for Single Action Fire Door

Meeting Stile are seals for frameless glass sliding doors.

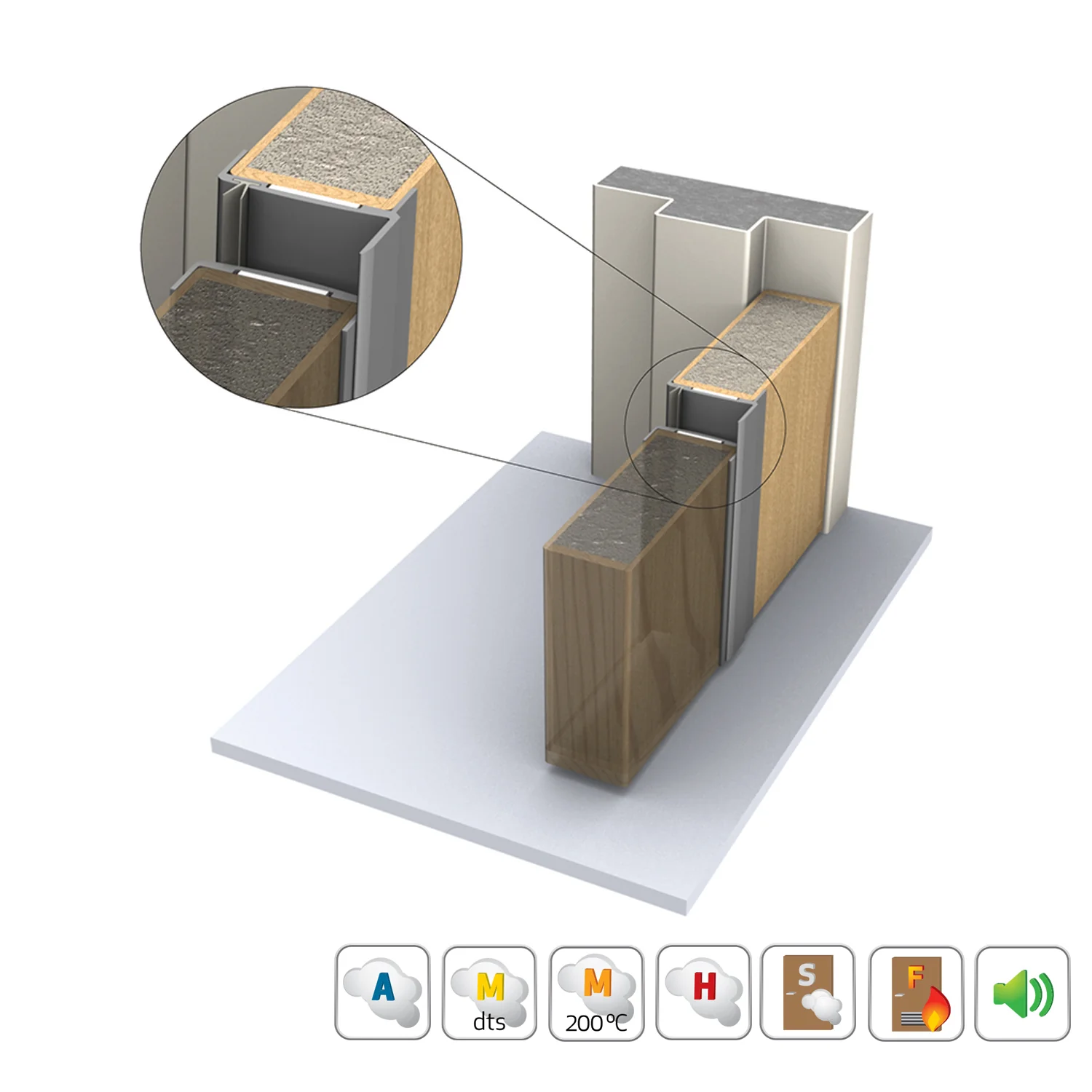

Meeting Stile Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.

Features:

• New modern and aesthetic appearance
• Incorporates intumescent fire and smoke sealing technology
• Improves acoustic performance
• Can be used to upgrade existing fire doors
• Easy installation
• Sold as complete assembly incorporating 2 identical aluminium sections and PVC encased intumescent seals with elastomeric
  smoke and acoustic fins

Fixing:

• The Kilargo FDMS-T astragals come complete with the intumescent and silicone seal fitted. Simply cut to length and screw-fix to the respective door leaves.

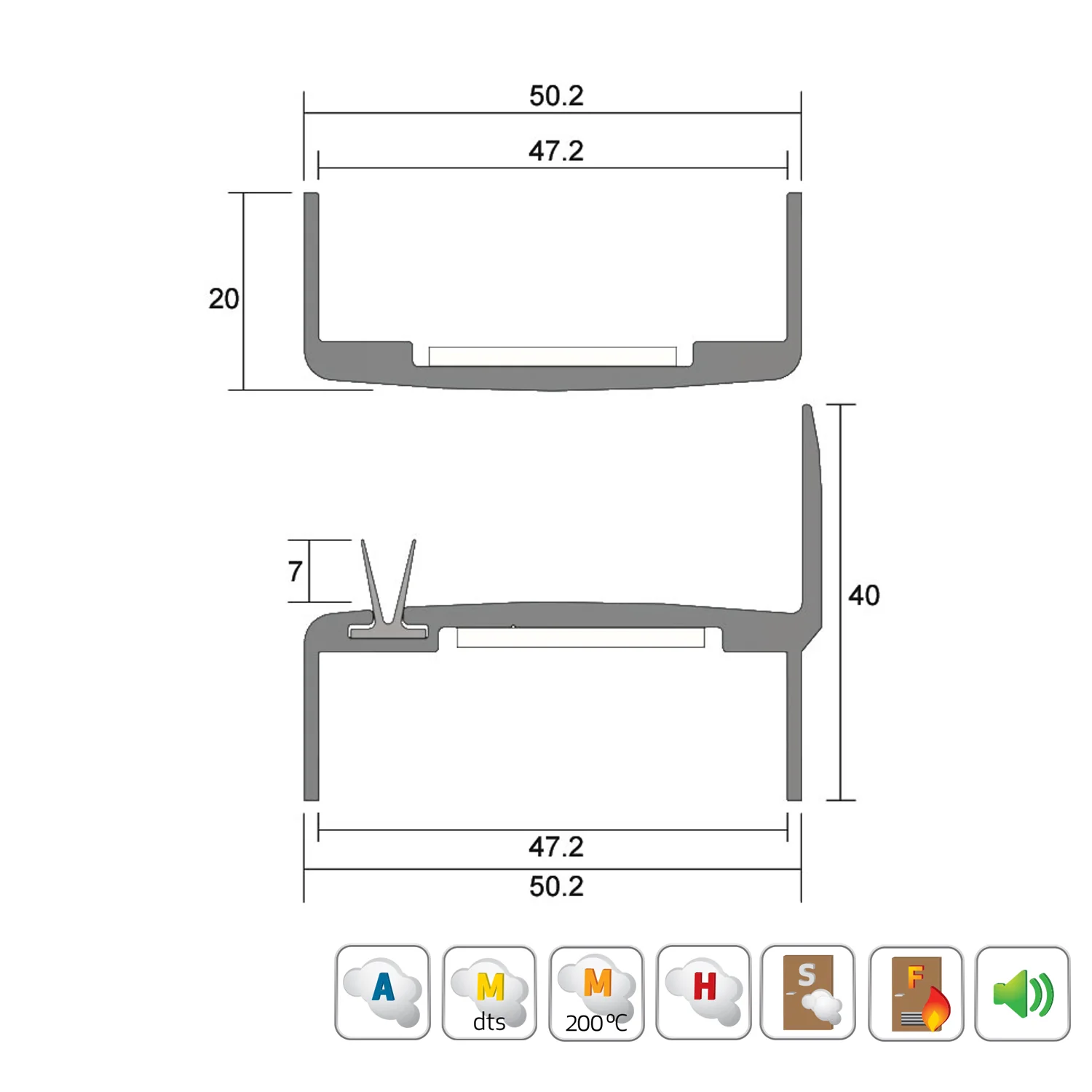

Specifications:

• Material: Anodised Aluminium
• Available Sizes (Length):
  • 2135mm
  • 2440mm
  • 3050mm
  • 3500mm
• Finish: Clear Anodised

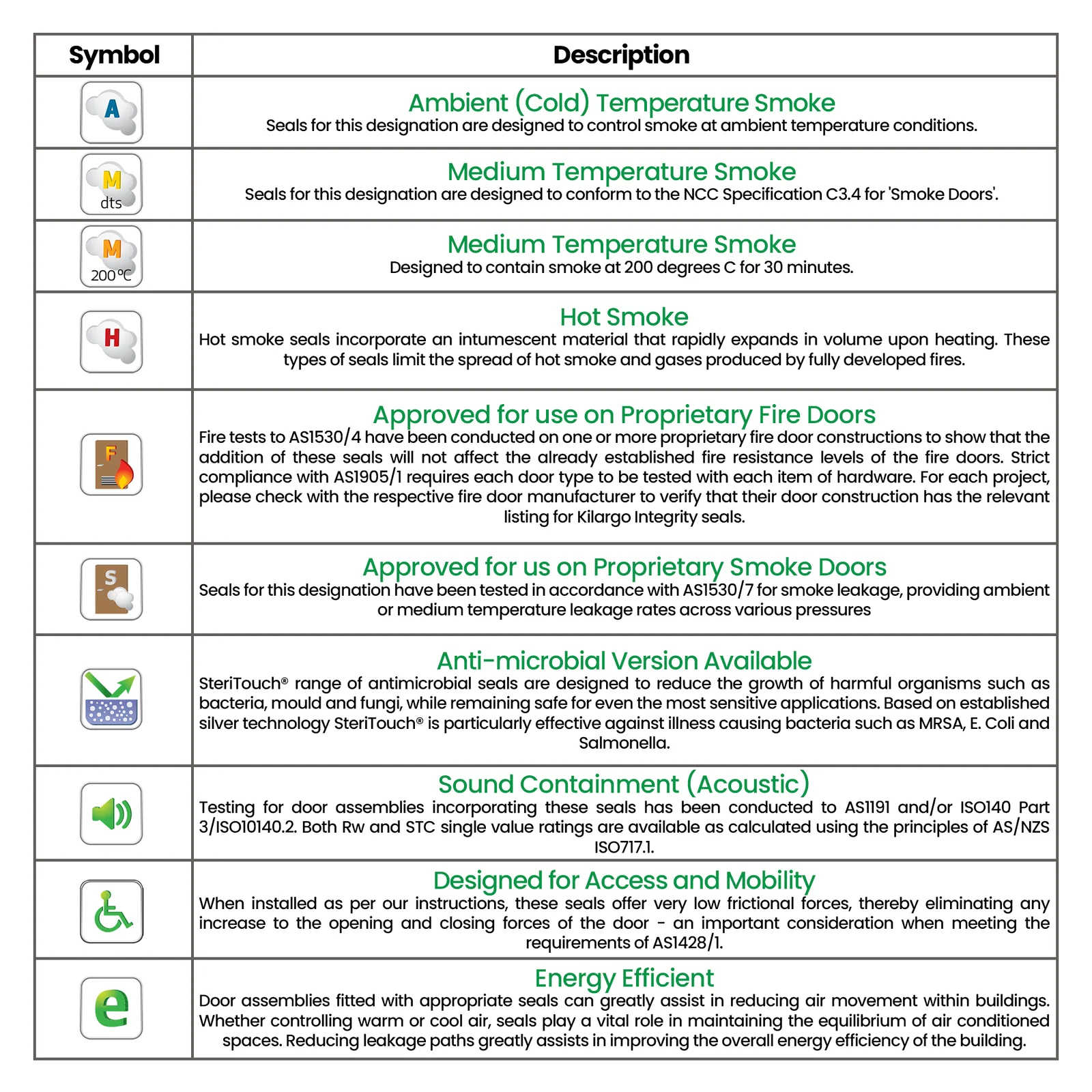

Approvals:

• AS1530/4 fire tests with proprietary fire door assemblies
• Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
• Conforms with BCA Specification C3.4 smoke sealing requirements
• Acoustically tested in accordance with AS1191, IS0140.3 & ISO10140-2.
