Kilargo IS8110si Antimicrobial Fully Mortised Flat Back Door Seal

Door Bottom Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.

Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.

Features:

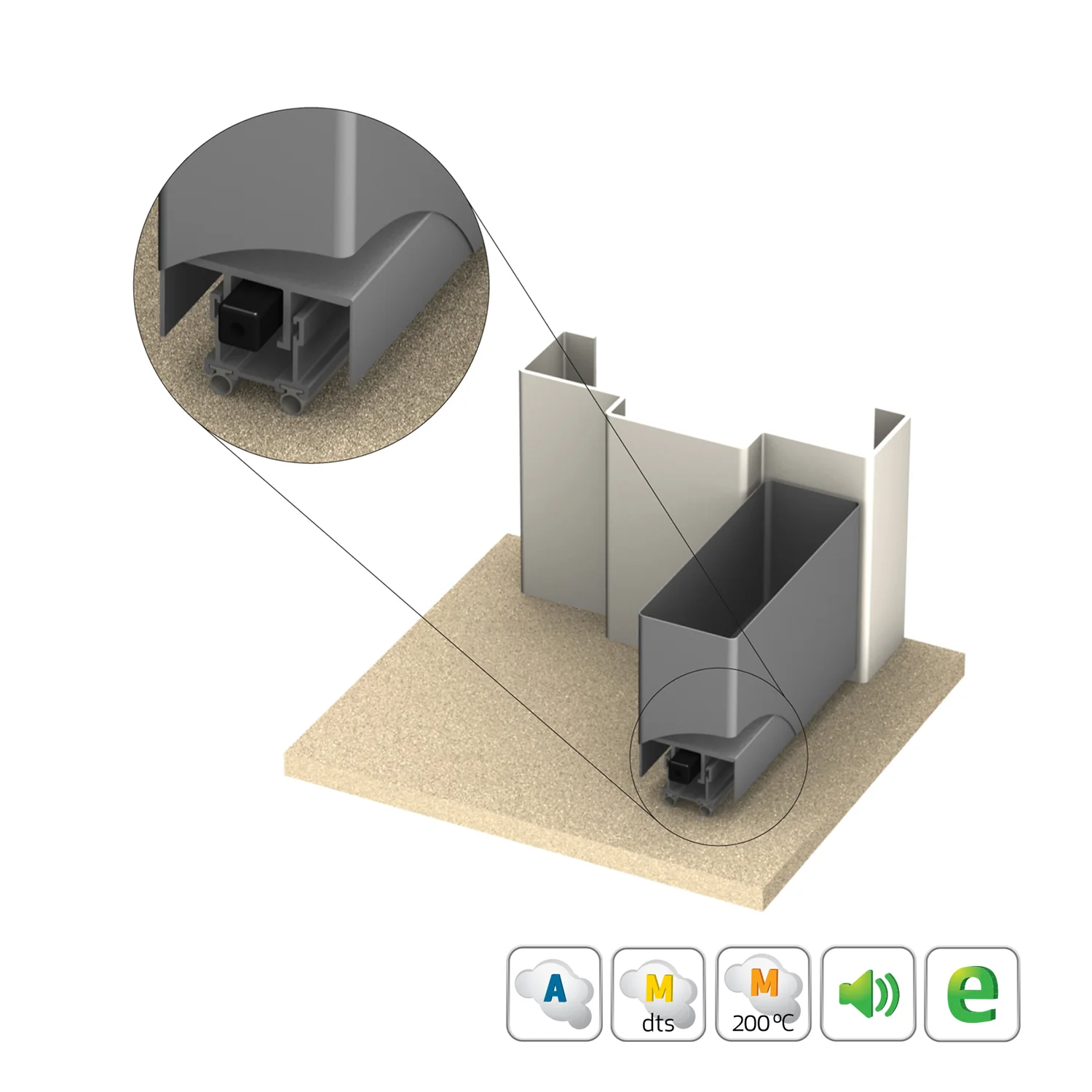

• A fully-mortised, automatic “flat back” seal to suit installation to hollow metal door or aluminium door rails for single action doors.
• Operates automatically by a spring loaded mechanism which lifts the seal clear of the floor as soon as the door is opened by a few millimetres.
• The seal operates automatically by pressure against the door jamb on its adjustable strike button.

 Specifications:

• Available Size (Lengths): 610mm, 820mm, 920mm, 1070mm and 1220mm
• Finish: Clear Anodised
• Maximum Allowable Cut-Back Sizes: (*Seals can be cut on site to exact dimension)
  • 610mm seal cuts to 520mm
  • 820mm seal cuts to 610mm
  • 920mm seal cuts to 820mm
  • 1070mm seal cuts to 920mm
  • 1220mm seal cuts to 1070mm

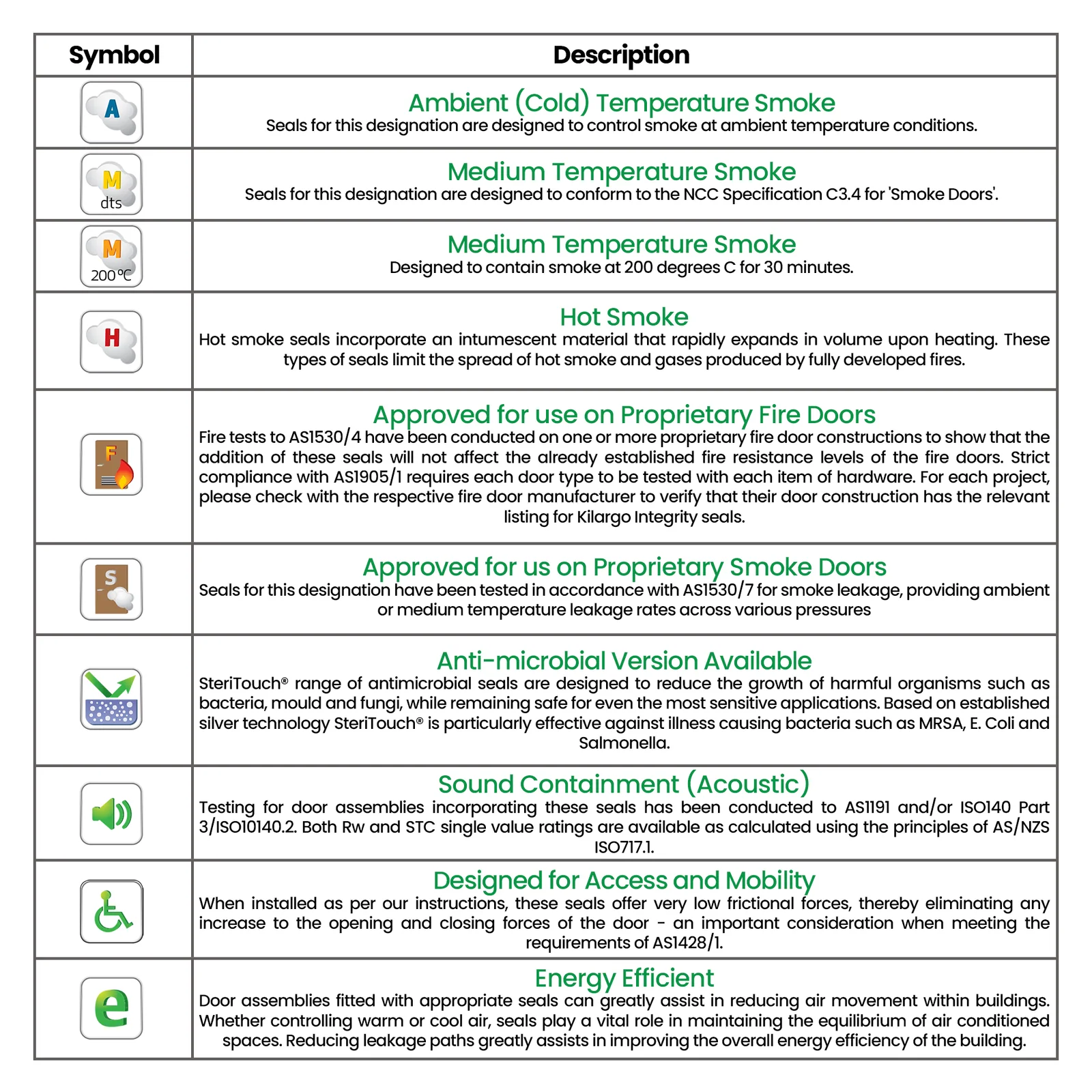

Approvals:

• UL Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Conforms with BCA Specification C3.4 smoke sealing requirements
• Acoustically tested in accordance with AS1191, IS0140.3 & ISO10140-2
• Durability tests demonstrating over 1,000,000 open and close cycles
