Lockwood Door Handle 1901 Square End Plate With Cylinder
1901/180SC

PLEASE NOTE: This item is Non returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 8-10 business days after payment is made.

Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings.

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping.

Features:

• Style and versatility are combined in this range which comprises four architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every application
• Lockwood Brass Plate furniture is made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice
• The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture
• Internal plate with visible fixings (screws not included)
• Cylinder hole (cylinder not included)
• Non-handed
• Supplied in trade pack

Specifications:

• Handle Type: Lever 180
• Door Thickness: 32mm to 45mm
• Plate Dimension:
  • Height: 166mm
  • Width: 48mm
  • Depth: 12mm

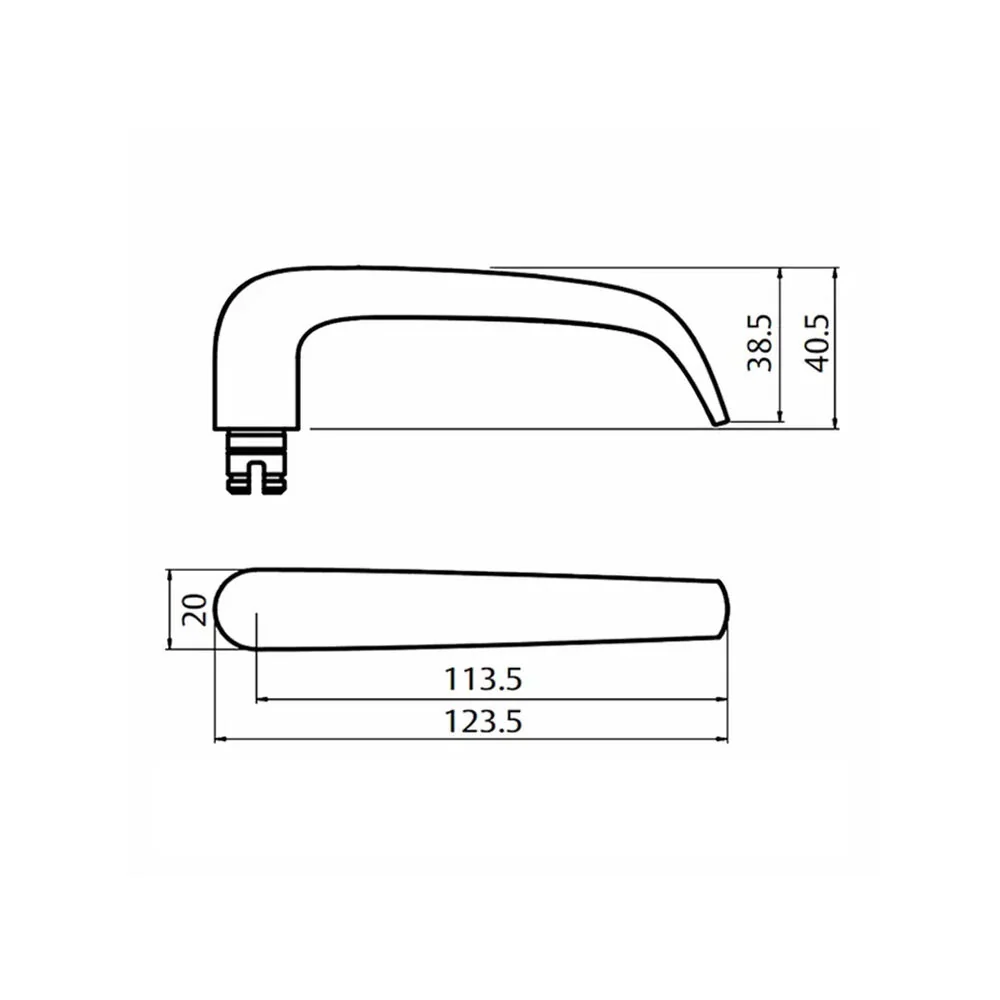

• Lever Dimension:
  • Length: 123.5mm
  • Projection: 52.5mm
  • Finger clearance: 40mm
• Cylinder pitch: 64mm
• Fixing centres: 148mm
• Finish: Satin Chrome

Standard and Compliance:

• Fire Rating: Successfully tested up to 4 hours with a fire rated Lockwood mortice lock on fire door assemblies (depending on type of doorset) in accordance with Australian Standard AS1905.1:2005, Fire Resistant Doorsets
• D8: Successfully tested to conform with Level D8 (500,000 cycles) under Australian Standard AS4145.2-2008, Locksets and hardware for doors and windows
• Disabled Compliant: meet the requirements of AS1428.1-2009, Design for access and mobility

""

"
