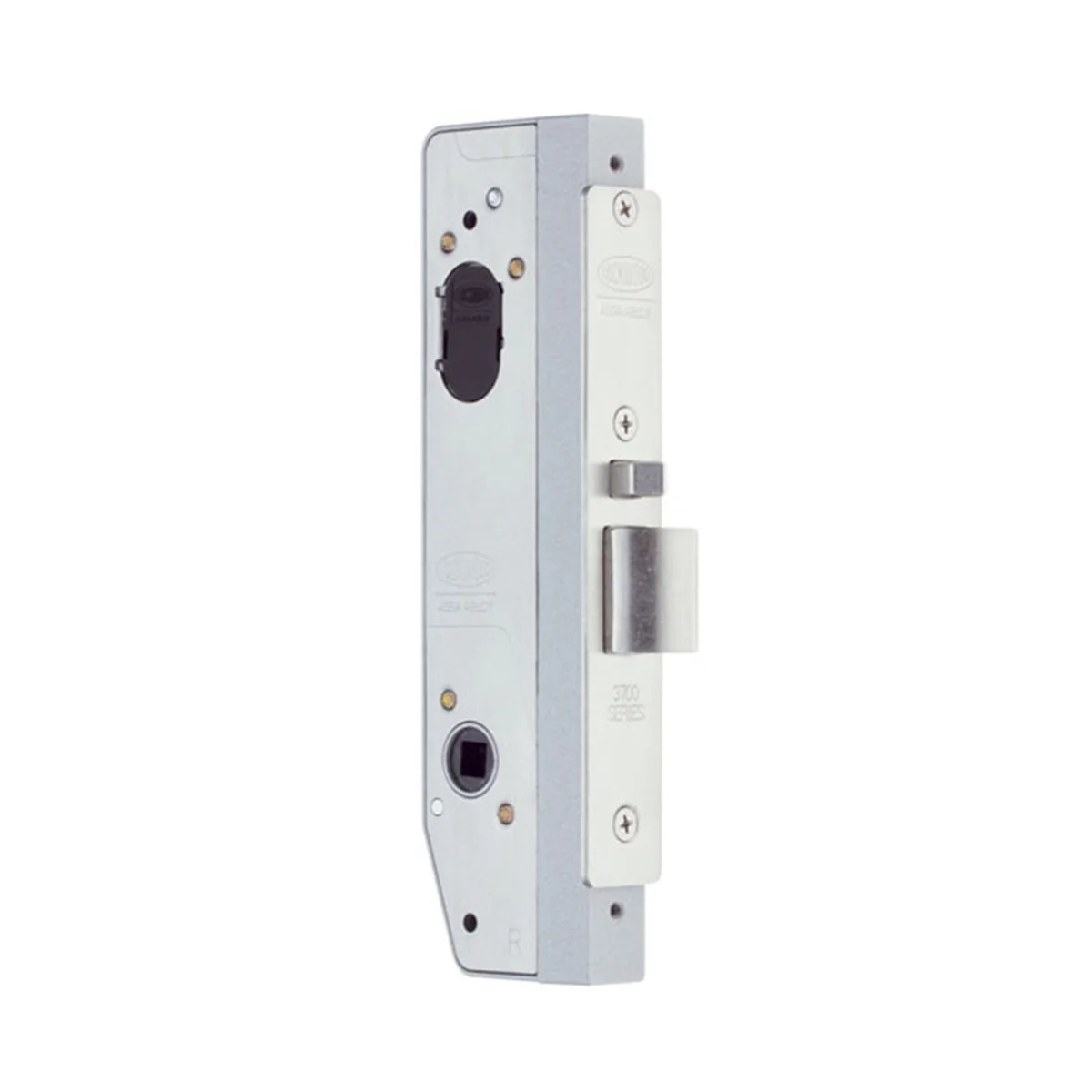

Lockwood Primary Mortice Lock
6782SS

Mortice Lock provides more security on exterior doors that have windows. (e.g. When intruders attempt to break into a building through a window, the key lock on the inside of the door will stop them from entering)

Mortice Lock Function - where the deadbolt locks by a key on both the exterior and interior of the lock. Latch is operated on the interior and exterior by a knob or lever.

• Suitable for heavy duty use in industrial and commercial buildings, institutions, clubs, schools, hospitals, hotels and similar buildings.
• Designed to incorporate a greater range of lock functions into one primary lock.
• First holdback capable lock, the Selector® 3780 series also includes an selectable anti-lockout feature.
• All handing setting (Passage, Combination or Escape) can be adjusted via the hub selector located under the face plate.

Features:

• Short backset universal primary mortice lock.
• Easy Red /Green function setting.
• All lock settings are made from under the faceplate allowing for simple in-door configuration.
• Standard primary locks include holdback and anti-lockout capabilities.
• Lock is always holdback capable, no setting is required. Holdback can be activated at any time - unless anti-lockout is selected.
• Operated by key or handle outside or by turnsnib, key or handle inside.
• Zinc diecast body with stainless steel chassis plates for improved strength.
• Electric Strike compatibility.
• Supplied less cylinder.
• Supplied with Selector® 'V' cam.

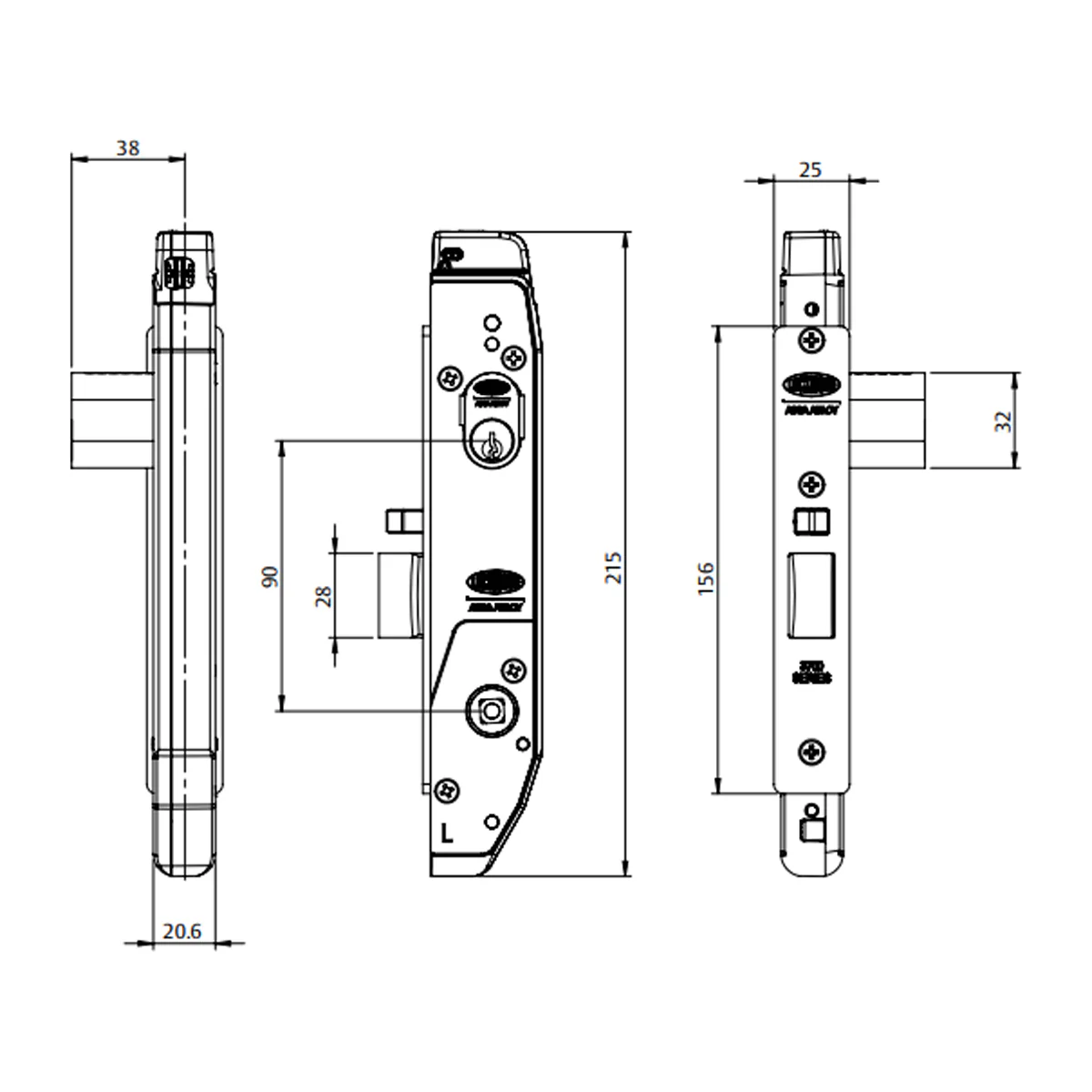

Specifications:

• Backset: 38mm
• Metal Door Thickness: 35-50mm
• Latch Bolt: 15mm
• Anti-lockout Function: Yes
• Compatible With Most Restricted Keying Systems: Yes
• Holdback Function Built-in: Yes
• SCEC Endorsed: No
• Fire Rated: No
• Finish: Satin Stainless Steel
