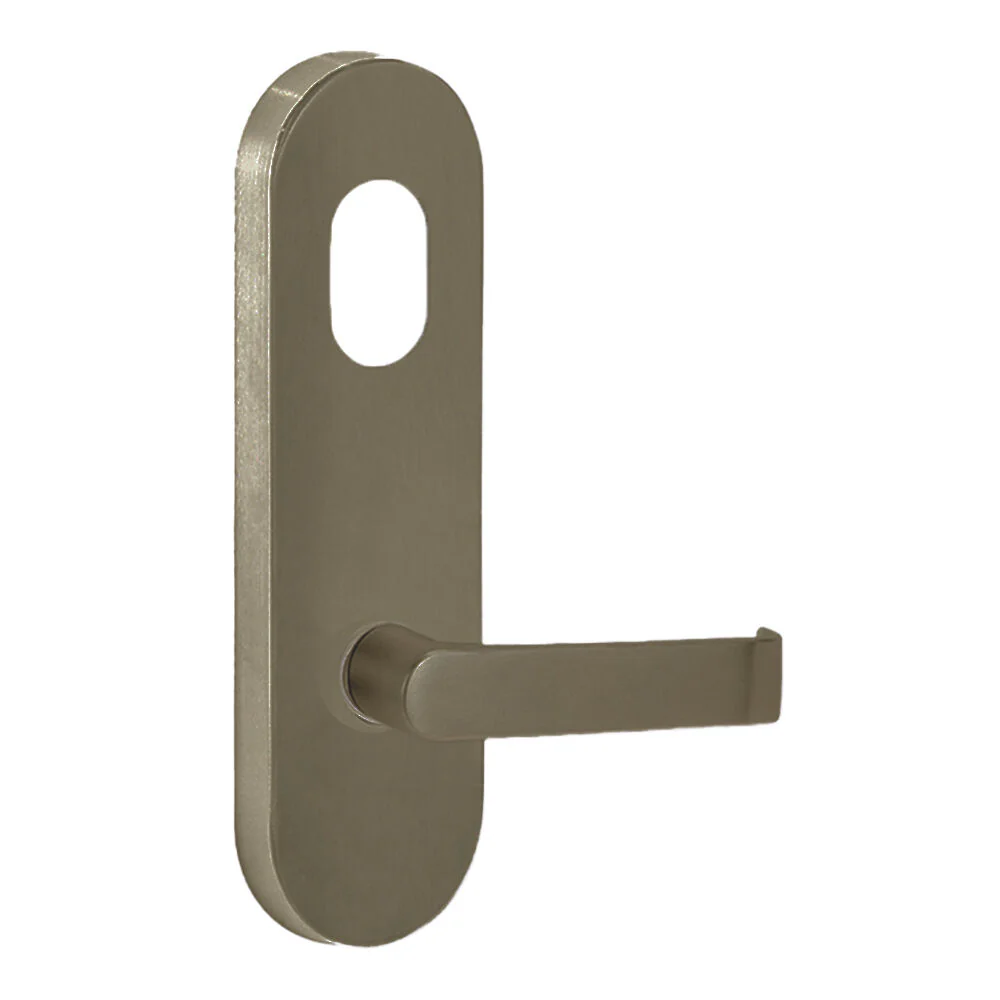

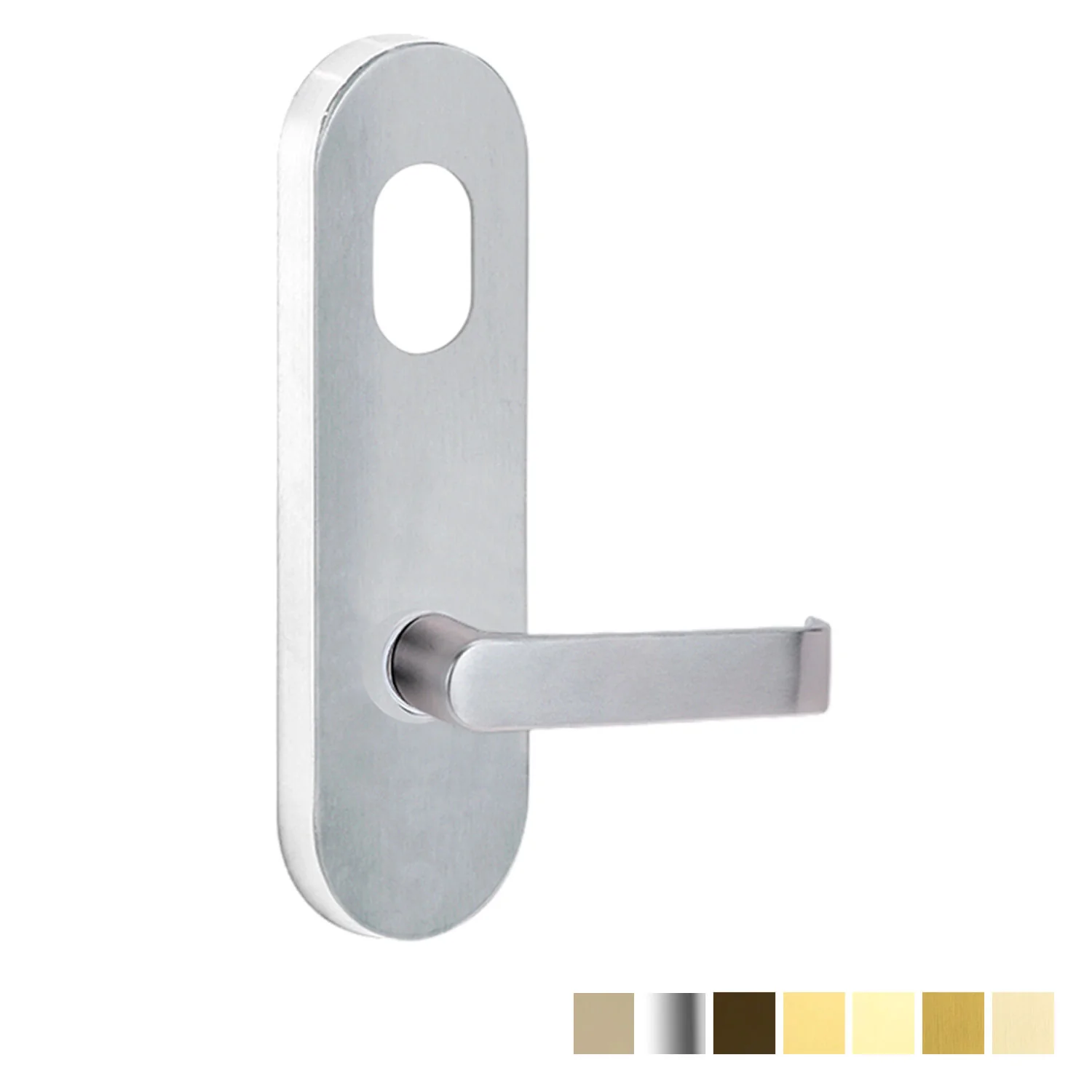

Lockwood 2801/59 Round End Plate with Cylinder Hole & 59 Lever

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 8 business days after payment is made.

Round End Plate with Cylinder Hole and Door Lever is commonly used in residential and commercial door hardware, providing a secure and functional solution for interior and exterior doors.

Round End Plate with Cylinder Hole and Door Lever Function - function provides a sleek and secure handle solution for doors, combining both style and practicality.

Features:

• A classic oval shapped plate suiting corporate, commercial and public spaces with high use requirements
• Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks
• Lockwood lever 59 Overture
• External plate with concealed fixing (screws included)
• Cylinder hole (cylinder not included)
• Non-handed
• Symmetrical levers may be reversed by removing the stop screw

Specifications:

• Door Thickness: 32mm - 45mm
• Cylinder Pitch: 64mm
• Fixing Centre: 148mm
• Plate Dimensions:
  • Dimensions: 166mm
  • Cylinder pitch: 48mm
  • Fixing centres: 12mm
• Lever Dimensions
  • Length: 121mm
  • Projection: 57.5mm
  • Finger clearance: 51mm
• Available Finish:
  • Architectural Bronze Unlacquered
  • Chrome Plate
  • Oil Rubbed Bronze
  • Polished Brass
  • Polished Brass Unlacquered
  • Satin Brass
  • Satin Brass Unlacquered
  • Satin Chrome
