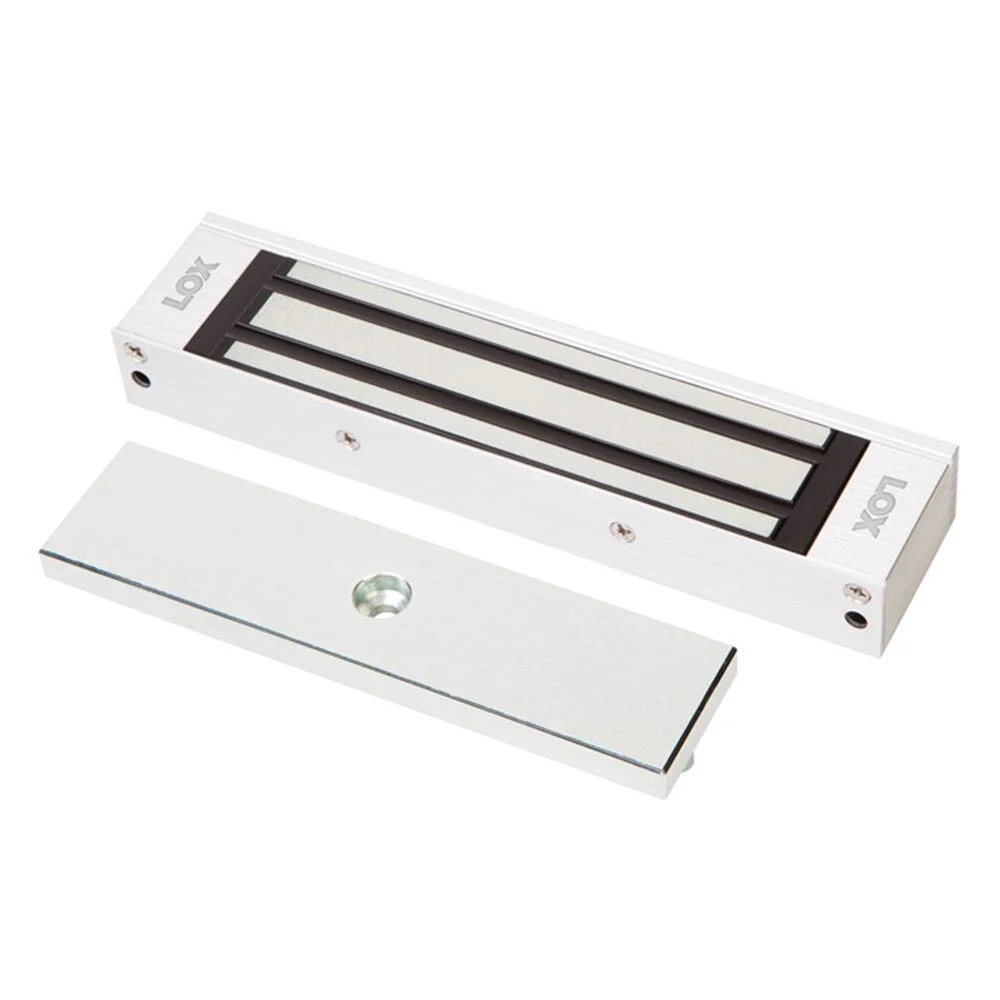

LOX Single Mini Surface Mount Electro Magnetic Lock 180kg CCW30S
Description
The LOX CCW30S Electro magnetic non-monitored mini lock was designed for securing hinged doors on lockers, cabinets or other kinds of small doors.
The holding force is up to 180kg.
- Micro/min magnetic lock.
- Suit single door cupboard.
- Dual voltage 12V DC/24V DC.
- Current draw 12V DC @ 350mA & 24V DC @ 175mA.
- Surface mounted magnet.
- Non-monitored.
- Satin anodised aluminium housing.
- Zinc plated electromagnetic body.
- Grain orientated silicone steel armature plate.
- Magnet size 166 (L) x 38 (H) x 20 mm (D).
- Armature plate 130 (L) x 32 (H) x 9 mm (D).
- Holding force 180kg.
- Built-in varistor (MOV) surge protection.
- No moving parts.
Description
The LOX CCW30S Electro magnetic non-monitored mini lock was designed for securing hinged doors on lockers, cabinets or other kinds of small doors.
The holding force is up to 180kg.
- Micro/min magnetic lock.
- Suit single door cupboard.
- Dual voltage 12V DC/24V DC.
- Current draw 12V DC @ 350mA & 24V DC @ 175mA.
- Surface mounted magnet.
- Non-monitored.
- Satin anodised aluminium housing.
- Zinc plated electromagnetic body.
- Grain orientated silicone steel armature plate.
- Magnet size 166 (L) x 38 (H) x 20 mm (D).
- Armature plate 130 (L) x 32 (H) x 9 mm (D).
- Holding force 180kg.
- Built-in varistor (MOV) surge protection.
- No moving parts.
$143.67
LOX Single Mini Surface Mount Electro Magnetic Lock 180kg CCW30S—
$143.67
Description
Description
The LOX CCW30S Electro magnetic non-monitored mini lock was designed for securing hinged doors on lockers, cabinets or other kinds of small doors.
The holding force is up to 180kg.
- Micro/min magnetic lock.
- Suit single door cupboard.
- Dual voltage 12V DC/24V DC.
- Current draw 12V DC @ 350mA & 24V DC @ 175mA.
- Surface mounted magnet.
- Non-monitored.
- Satin anodised aluminium housing.
- Zinc plated electromagnetic body.
- Grain orientated silicone steel armature plate.
- Magnet size 166 (L) x 38 (H) x 20 mm (D).
- Armature plate 130 (L) x 32 (H) x 9 mm (D).
- Holding force 180kg.
- Built-in varistor (MOV) surge protection.
- No moving parts.
