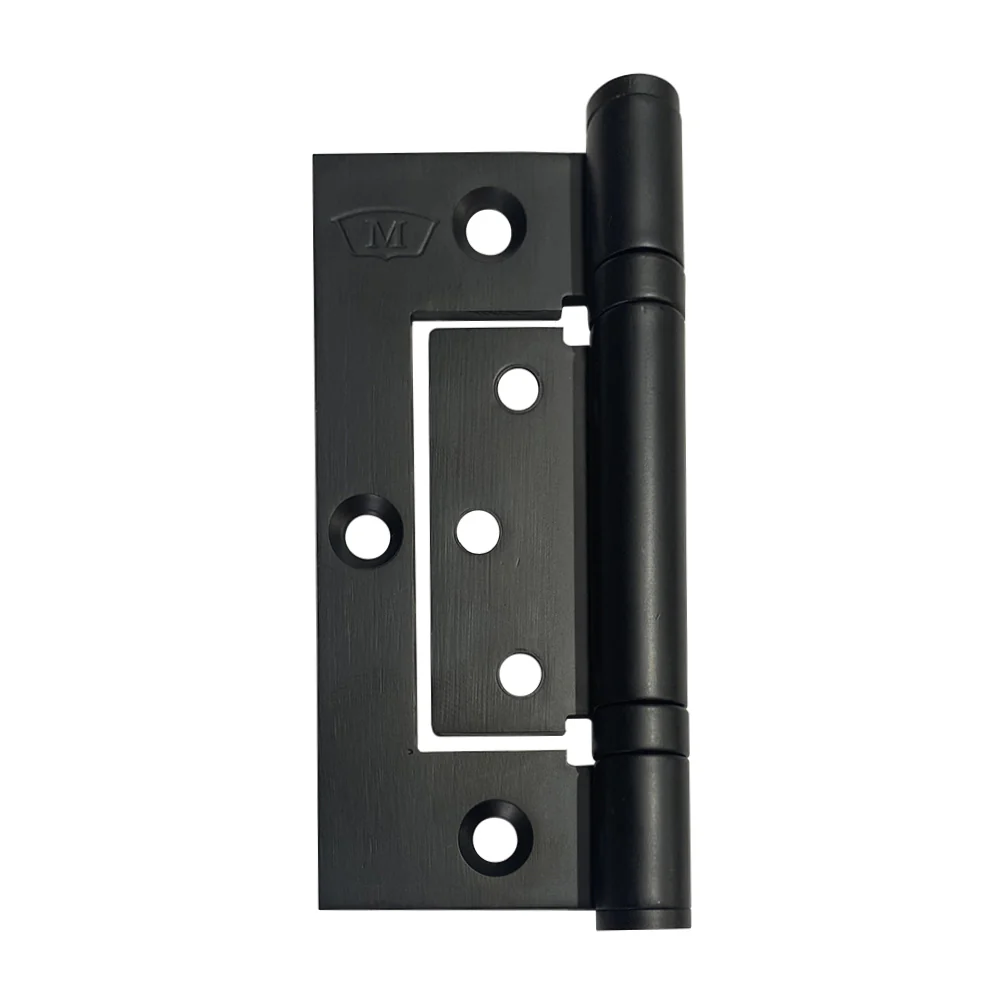

McCallum Medium Duty Interfold Hinge Offset Knuckle
S264BLK

Interfold Hinge used for concealed, interior, and partial doors, as well as providing sufficient closing force for wood and lightweight metal doors.

Interfold Hinge Function - suitable for either Centre Pocket or Front Edged Glazing systems.

Features:

• Suitable for timber doors in medium usage situations
• Suitable for timber because the fixing holes on the large leaf are further away from the timber edge
• Offset Knuckle

Specification:

• Material: Stainless Steel 304 Grade.
• Bearings: 2 Stainless Steel Off-Cage Ball Bearings.
• Pin Dia: 6.9mm - Stainless Steel 304 Grade.
• Knuckle: Round
• Endcaps: Pressed-in interference knurled fit. Stainless Steel 304 Grade.
• Finish: Black

Fixing:

• Fastening screws supplied.
• Pop rivets are not recommended.
