McCallum Stainless Steel Wide Throw Butt Hinge S241 1x Hinge w/ screws

Application:

• Suitable for aluminium and timber doors with aluminium, steel and timber frames.

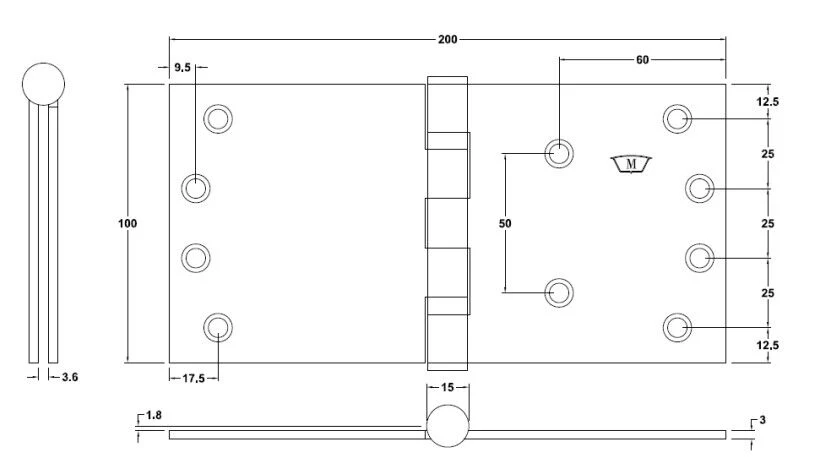

Specifications:

• Material: 304 grade stainless steel
• Pin Dia: 6.9mm – 304 stainless steel
• Knuckle: Round
• Endcaps: Pressed-in interference fit 304 grade stainless steel
• Stamped with McCallum crest
• Fixed Pin
• Bearings: 2 off cage & ball bearings
• All 304 grade stainless steel

Installation Guide Only:

• Door Thickness: Minimum 35mm
• When using a door closer, we recommend a minimum of 4 hinges be used, with the top hinge located as high as possible
• Standard Door: 2040 (H) x 820 (W) - 3 hinges
• Fixing Fastening screws supplied
• Two extra fastening holes to allow more support from jamb material
• Pop rivets are not recommended
• Finish: Satin stainless steel
