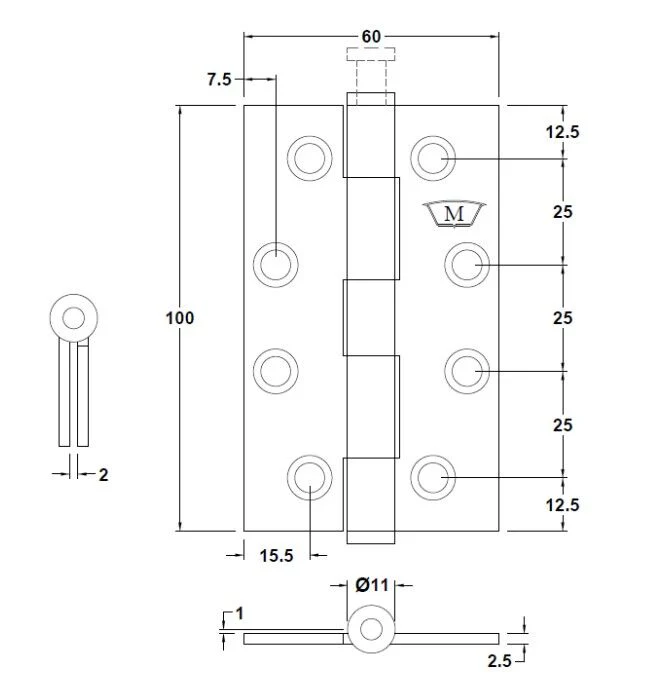

McCallum Stainless Steel Butt Hinge Loose Pin
S211

Application:

• Suitable for aluminum and timber doors with aluminum, steel and timber frames

Specifications:

• Stamped with McCallum crest
• Loose Pin
• Material: Stainless Steel 304 Grade
• Pin Diameter: 6.9mm - Stainless Steel 304 Grade
• Knuckle: Round
• Endcaps: Pressed-in interference fit. Stainless Steel 304 Grade
• Door thickness: Minimum 30mm
• Standard Door: 2040mm (H) x 820mm (W) - 3 hinges
• Finish: Satin Stainless Steel

Installation Guide Only:

• When using a door closer, we recommend a minimum of 4 hinges be used, with the top hinge located as high as possible.

Fixing:

• 32mm x 8g stainless steel fasteners for timber (supplied)
• 12mm x M5 stainless steel metal fasteners (supplied)
• Pop rivets are not recommended
• Not recommended for Bi-Fold door systems
