Metlam Rebated Shaft Foot Assembly 200mm Satin Stainless Steel 110_200LEG
Metlam Rebated Shaft Foot Assembly
110_200LEG
Cubicle Foot Assembly is an essential component used in the construction of restroom partitions or cubicles and provides stability and support for the cubicle panels.
Cubicle Foot Assembly Function - installed at the base of the panels to elevate them from the floor and ensure that the cubicle remains level and can withstand regular use.

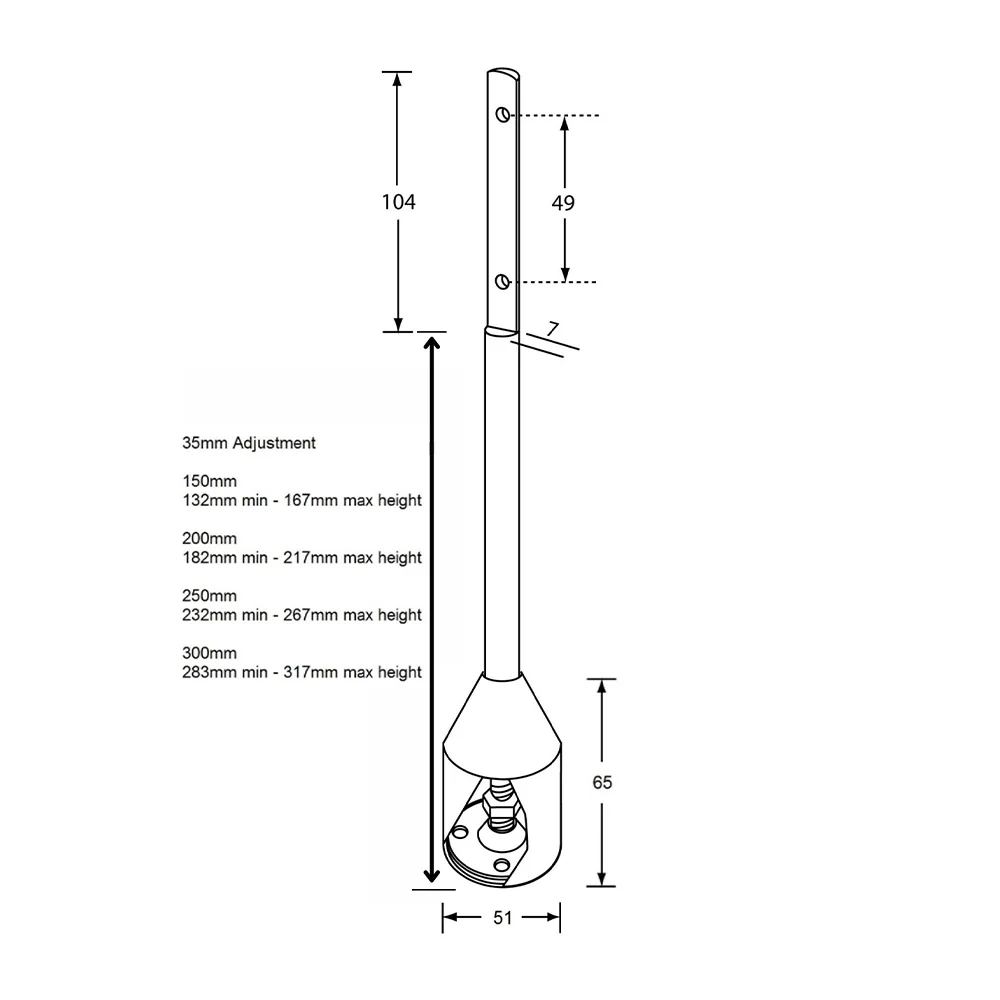

Specifications:
- Material: 304 Stainless Steel
- Foot Diameter: 51mm
- Foot Height: 65mm
- Fixing Height: 104mm
- Leg Diameter: 7mm
- Centre to Centre: 49mm
- Adjustable Height: 182mm - 217mm
- Finish: Satin Stainless Steel
Metlam Rebated Shaft Foot Assembly
110_200LEG
Cubicle Foot Assembly is an essential component used in the construction of restroom partitions or cubicles and provides stability and support for the cubicle panels.
Cubicle Foot Assembly Function - installed at the base of the panels to elevate them from the floor and ensure that the cubicle remains level and can withstand regular use.
Specifications:
- Material: 304 Stainless Steel
- Foot Diameter: 51mm
- Foot Height: 65mm
- Fixing Height: 104mm
- Leg Diameter: 7mm
- Centre to Centre: 49mm
- Adjustable Height: 182mm - 217mm
- Finish: Satin Stainless Steel
Description
Metlam Rebated Shaft Foot Assembly
110_200LEG
Cubicle Foot Assembly is an essential component used in the construction of restroom partitions or cubicles and provides stability and support for the cubicle panels.
Cubicle Foot Assembly Function - installed at the base of the panels to elevate them from the floor and ensure that the cubicle remains level and can withstand regular use.
Specifications:
- Material: 304 Stainless Steel
- Foot Diameter: 51mm
- Foot Height: 65mm
- Fixing Height: 104mm
- Leg Diameter: 7mm
- Centre to Centre: 49mm
- Adjustable Height: 182mm - 217mm
- Finish: Satin Stainless Steel
