Raven RP16Si Astragal Acoustic Smoke Seal - Available in Various Finishes and Sizes

Raven RP16Si Astragal Acoustic Smoke Seal

Meeting Stile are seals for frameless glass sliding doors.

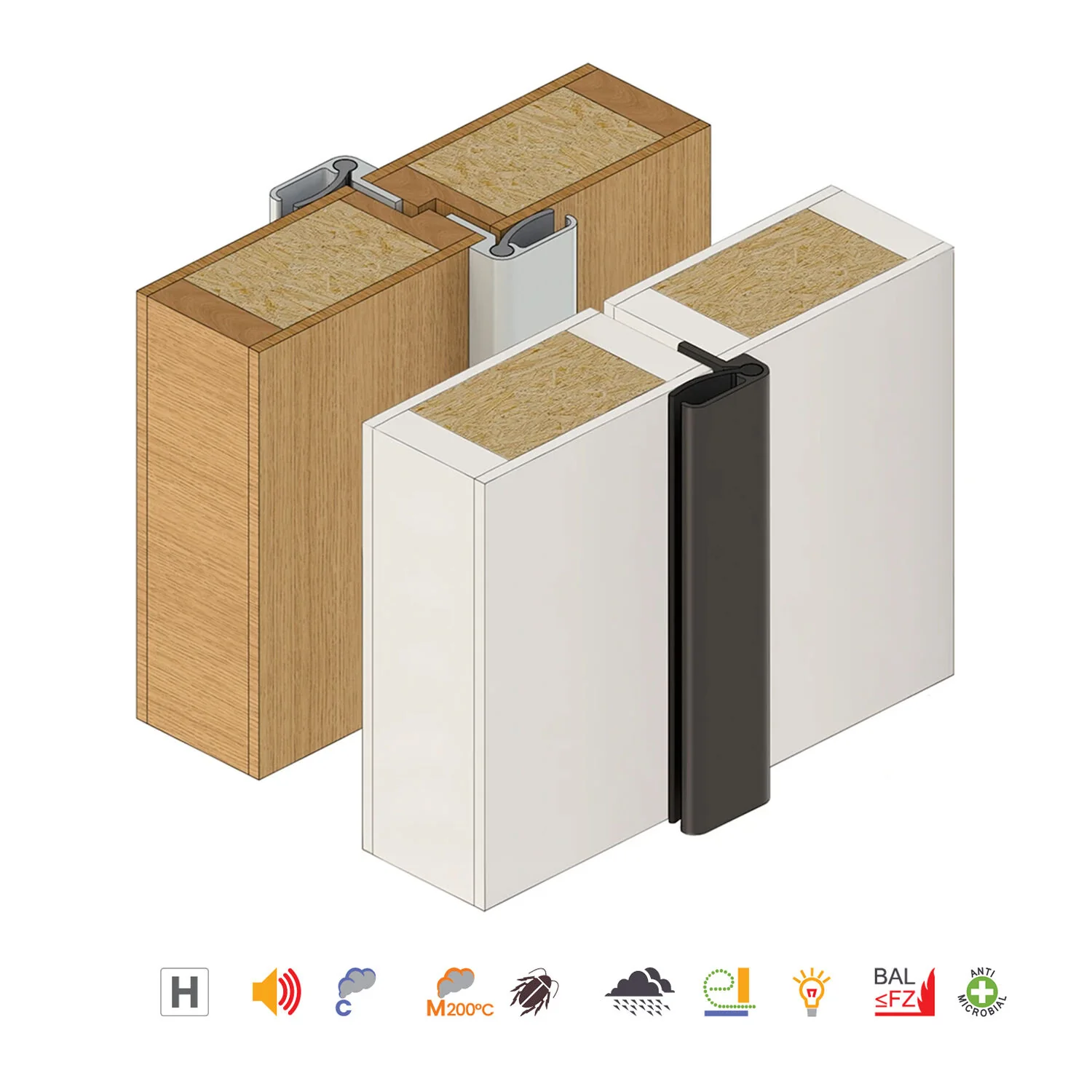

Meeting Stile Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.

Features:

  • Its proven design is effective in sealing the meeting stiles of plain or rebated double doors.
  • Its aluminium trim neatly conceals the sealing portion of the seal and provides a secure weatherproof rebate stop
  • If necessary, its aluminium fixing leg can be checked out to allow for locks and latches

Specifications:

  • Min and Max Gap: 2.5mm - 8mm
  • Fixing: Screw Fix
  • Width: 24mm
  • Depth: 22mm
  • Thickness: 2mm
  • Length:
    • 2250mm
    • 2500mm
    • 2750mm
    • 3000mm
  • Available Finish:
    • Black Anodised
    • Bronze Anodised
    • Silver Anodised

Approvals:

  • Certifire: CF 5710, ANSI/BHMA: A156.22, UL: R37913
  • NCC F7D6
  • Approved Document E, Rated to BS EN ISO 717-1
  • Gasket flammability index 1 when tested to AS1530.2
  • AS 1530.7, BS EN 1634-3, NCC S12C4 - Meets smoke leakage rates specified in AS 6905 & EN 13501-2 “Sa”, “S200”, NCC S12C4
  • ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
