Raven RP4 Door Bottom Seal

Door Bottom Seal used to close gaps between the bottom edge of a door and the floor. Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.

Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.

Features:

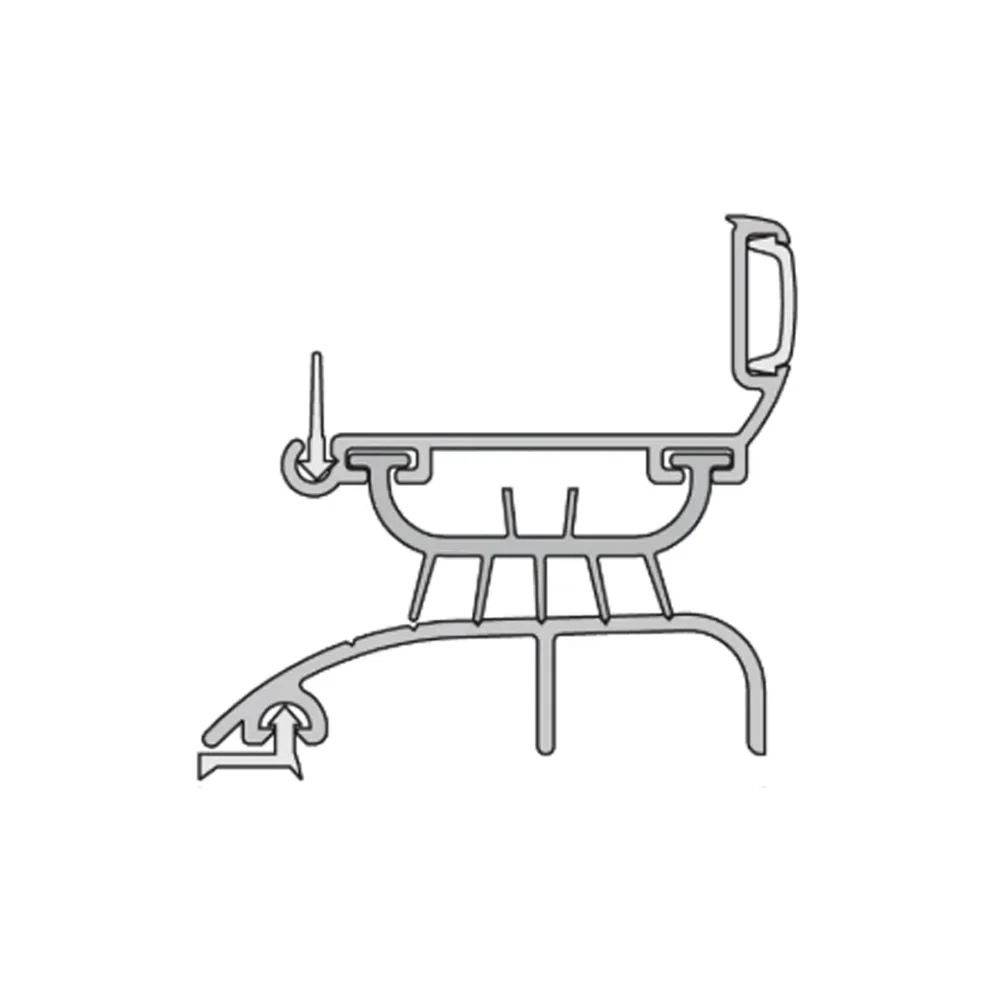

• Storm-proof door bottom seal designed for maximum weather protection
• Multi-blade sealing system that helps prevent rain infiltration
• Made from anodised aluminium with flexible PVC gaskets for durability
• Adjustable sealing section to fit door gaps (approx. 23–25 mm)

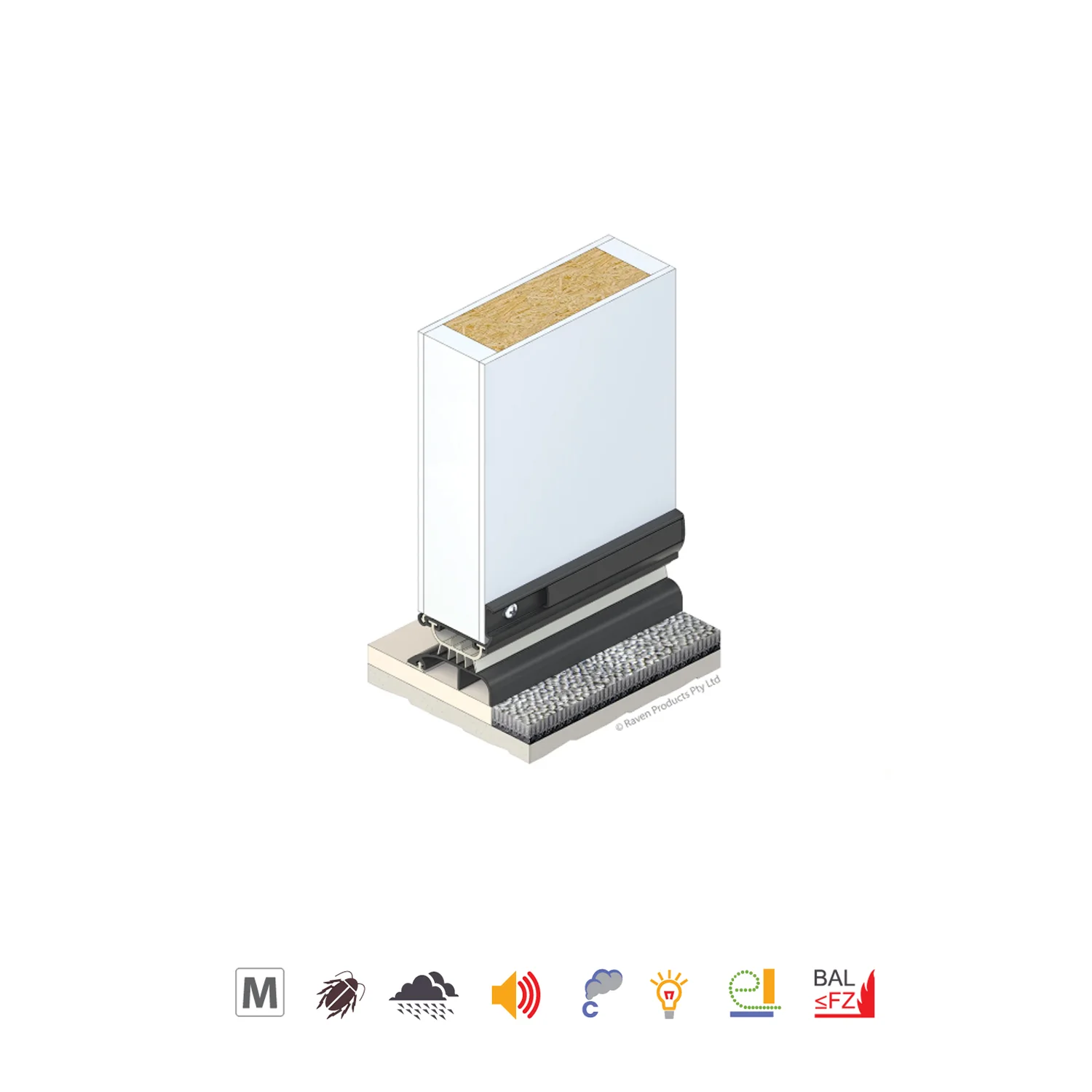

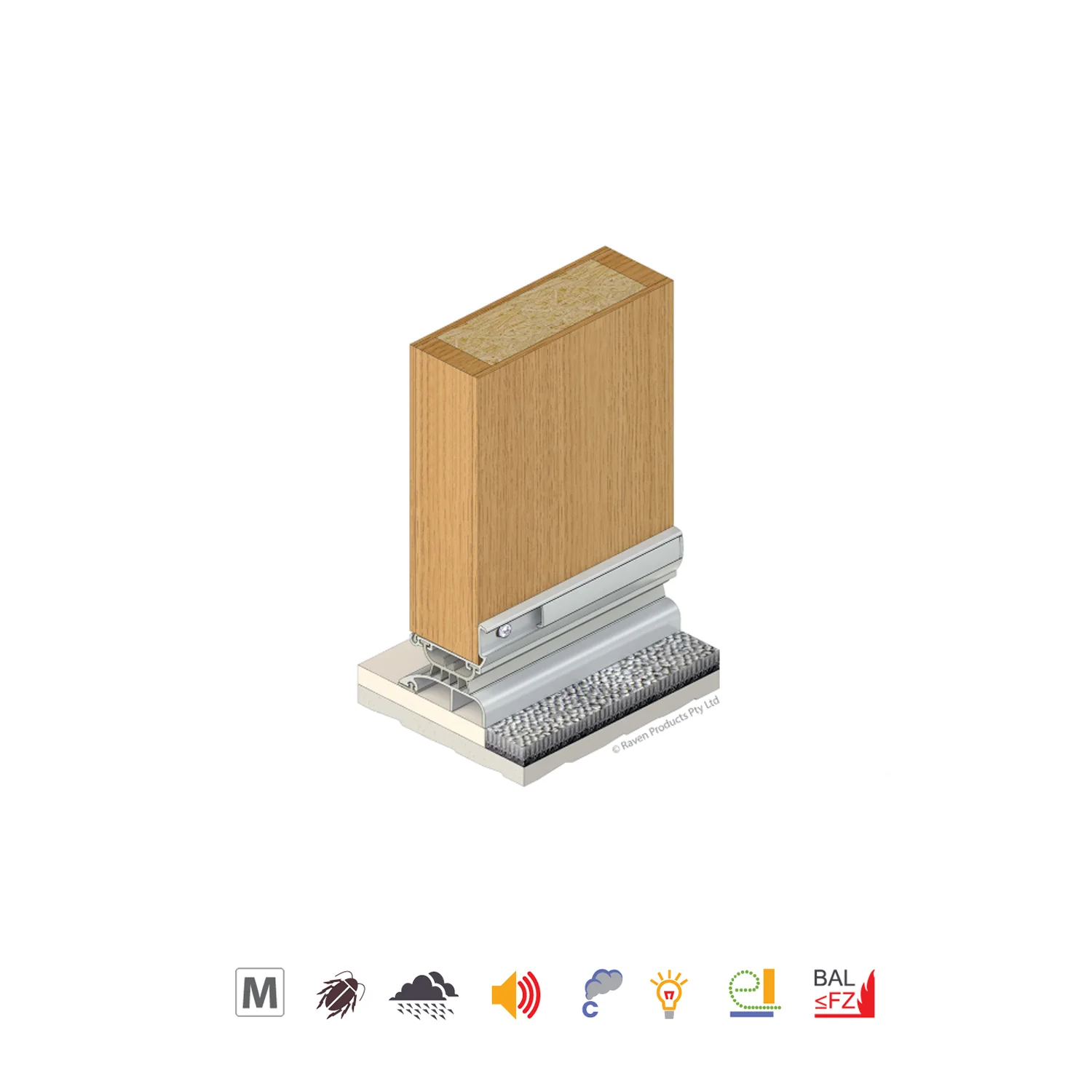

• Easy surface installation on the bottom of hinged doors without removing the door

Specifications:

• Location: Bottom of single and double butt hinged doors and sill. Minimum door thickness of 35mm
• Available Size/Length:
  • 926mm
  • 1250mm
• Fixing:
  • Screw Fixed
  • Concealed screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied
  • Fixing holes are pre-slotted
  • Threshold plate fixing holes are pre-punched and countersunk
• Min & Max Gap: 23mm to 25mm
• Replacement Seals: RP404, RP404a, RP404b
• Material:
  • Aluminum
  • Anodised aluminum with flexible PVC gaskets
• Door/Frame Construction: Timber
• Door Type:
  • Single Inward Opening
  • Single Outward Opening
  • Double Inward Opening
  • Double Outward Opening
  • Pivot
• Finish: Gold Anodised

Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.

Approvals:

• Access & Mobility AUS/NZ: NZBC D1/AS1 1.3.2
• Access & Mobility UK/EU: Approved Document M
• Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
• Insects & Vermin AUS/NZ: AS 4674 Sect. 2.1.5 Pt. (iv), AS 4674 Sect. 2.1.7
