Raven RP58 Brush Strip Seal

Brush Door Seal can be mounted to fit many angles and spaces. Doors are generally the most common use for weather stripping.

Brush Door Seal Function - are designed to remove leakage between surfaces. To provide the most effective seal possible on a irregular surfaces.

Features:

• Global GreenTag - Bronze

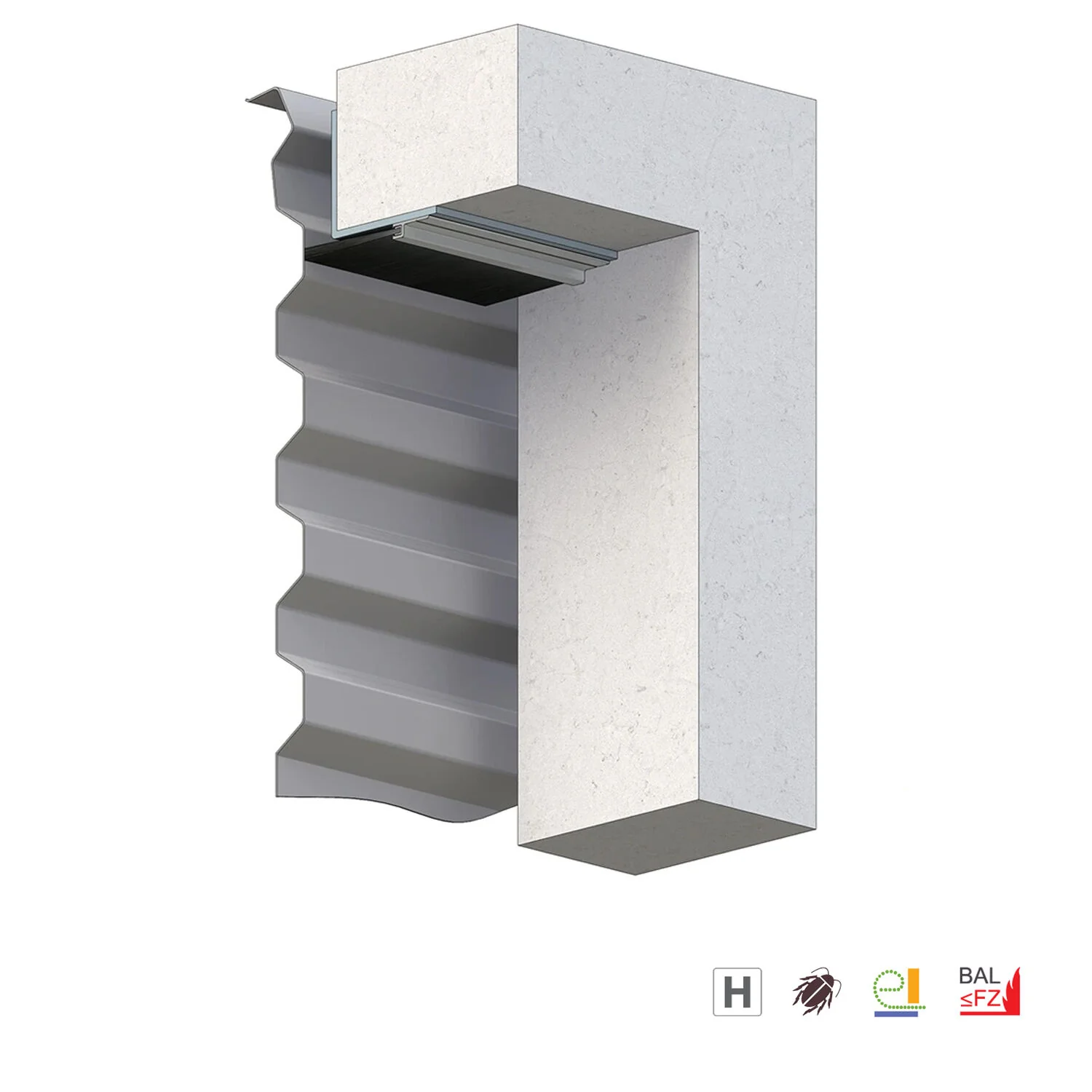

• Nylon brush strip seals with aluminium carriers that are ideal where larger gaps are encountered. They can be fitted to lintels of roll-up doors to help prevent the ingress of birds and wind blown embers in bushfire prone areas

Specification:

• Location: Bottom of single, double, revolving or sliding doors and double acting pivot doors. Lintels of roll-up garage doors. Suitable for hard, flat surfaces.Size: 1000mm
• Fixing: Screw Fixed, Self-adhesive (Self-adhesive or can be screw fixed. Note: Contact surface must be clean, smooth and if painted, well cured. Self-adhesive seals will not adhere to oiled or alkyd finishes or to easy clean wash and wear paint surfaces)

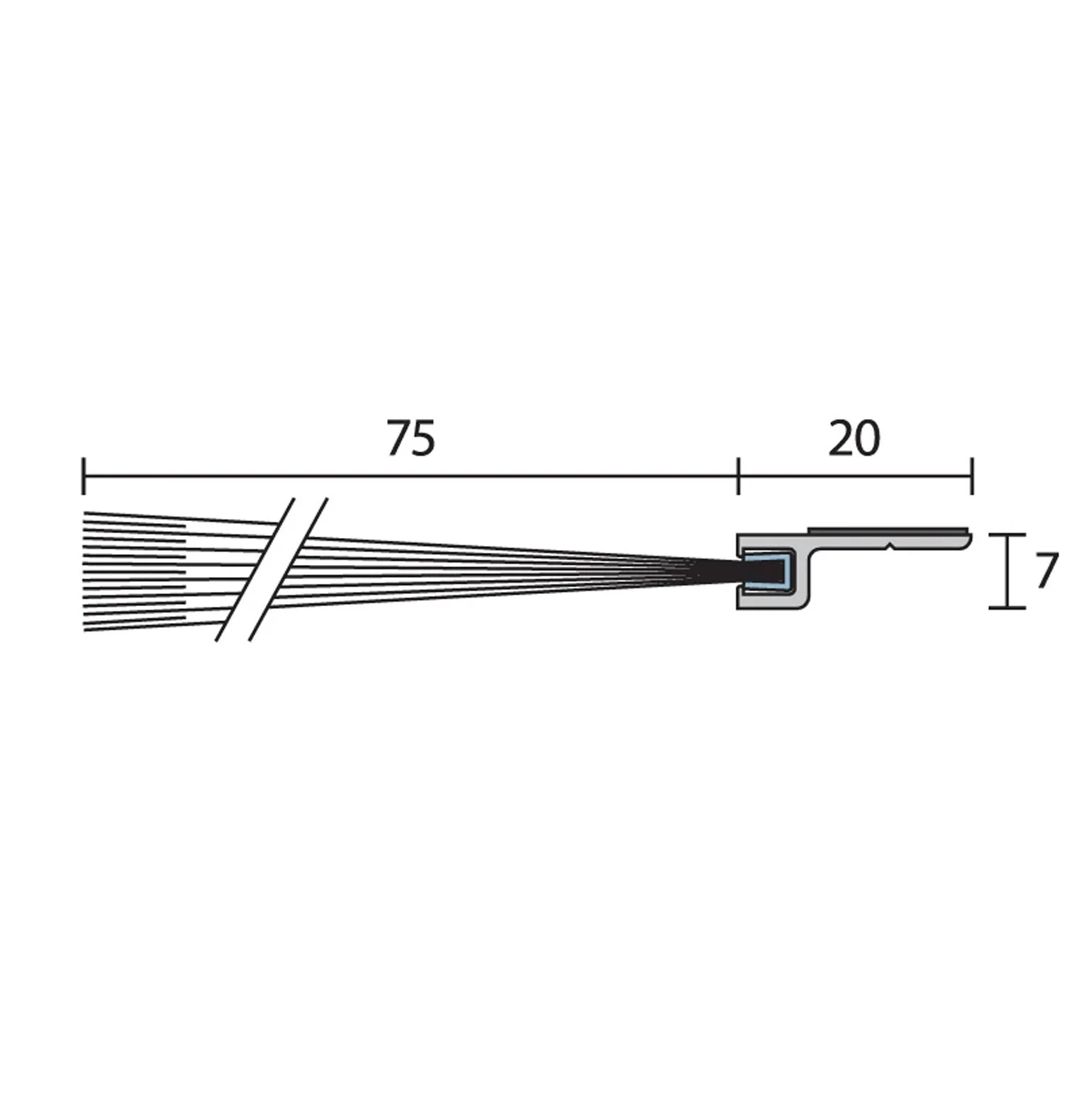

• Minimum and Maximum Gap: 50mm to 75mm (Gap can be user determined)
• Material: Aluminium (Anodised aluminium with black fine, dense, UV stabilised nylon filaments in a galvanised steel spine.)
• Door/Frame Construction: Timber, Aluminium
• Door Type: Single Inward Opening, Single Outward Opening, Double Inward Opening, Double Outward Opening, Sliding, Pivot, Revolving
• Available Sizes:
  • 1000mm
  • 2000mm
• Finish: Clear Anodised

Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.

Approvals:

• Fire Flammability Index: Brush Strip flammability index 1 when tested to AS1530.2
• Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
• BAL Statement: L FZ when used on a garage in accordance with AS 3959
