Lockwood Entrance Door Pack 3572 Mortice Lock with Cylinder and Dormakaba 6600 Square End Plate Furniture

Entrance Lever is defined as a lock where the unlocked by key from outside when outer lever is locked by turn-button on inside lever. Inside lever always unlocked

Entrance Lever Function - Outisde key unlocks outside lever, inside lever free at all times, push button locks outside lever.

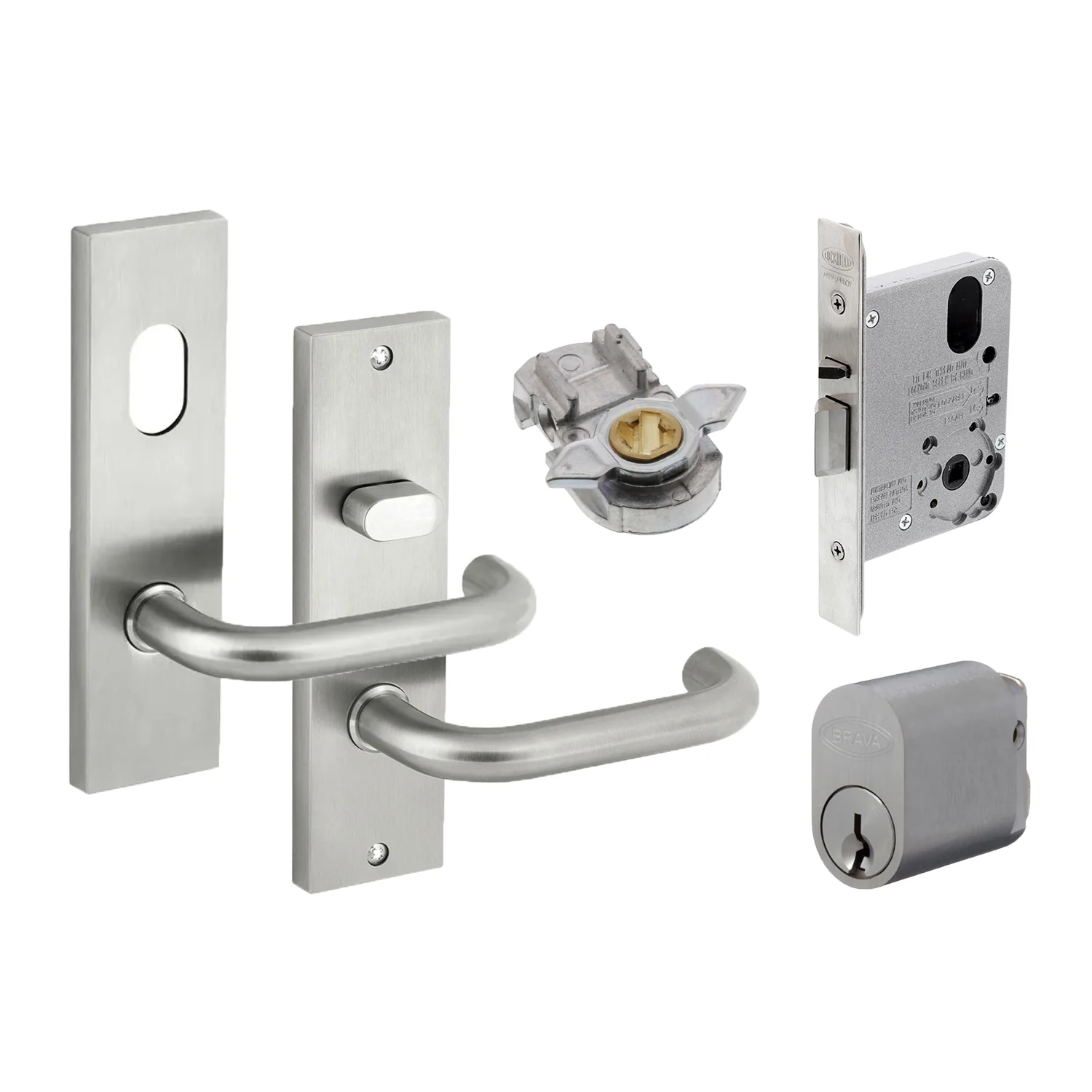

Includes:

• 1 x Lockwood Door Mortice Lock Synergy Vestibule 60mm Backset Satin Chrome (3572SC)
• 1 x Lockwood Turnsnib Adaptor Assembly (SP35725250)
• 1 x Dormakaba Door Lever on Square End Plate Furniture with Cylinder Hole Satin Stainless Steel (6600/30G)
• 1 x Dormakaba Lever on Rectangular Interior Square End Plate with Turnsnib Satin Stainless Steel (6603/30G)
• 1 x Brava Oval Cylinder X W Z Rabbit Cams 6 Pin Keyed Differ Satin Chrome (5070USCKD)

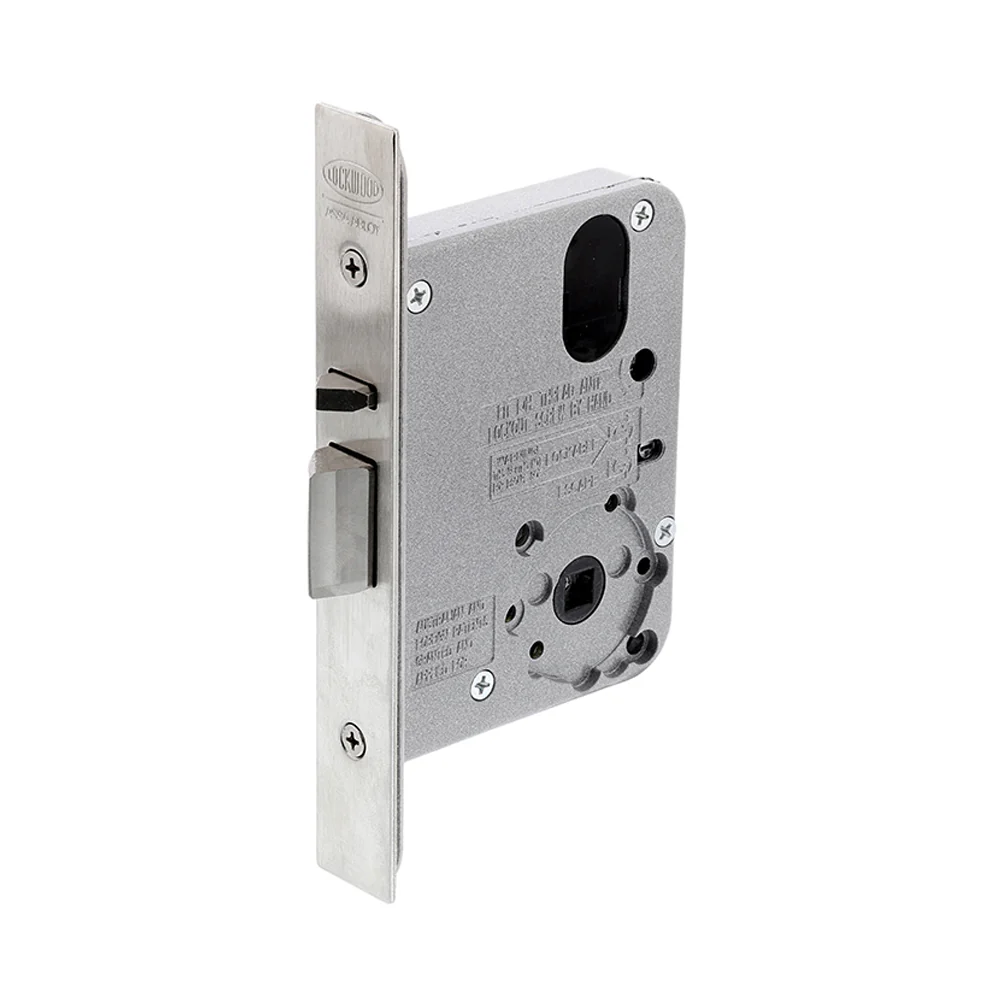

Lockwood Synergy Vestibule Mortice Lock
3572SC

Features:

• Vestibule function mortice lock
• Operated by key or handle outside or by turnknob, key or handle inside
• Can be set to escape or lockable function on either side of lock
• 15mm stainless steel reversible latch bolt
• Easily adapted to any function
• Cylinder sold separately
• Fire Rated to 4 hours

Specifications:

• Door Thickness: 32mm - 50mm
• Backset: 60mm
• Face Pate: 175mm (L) x 25mm (W)
• Case Size: 117mm (H) x  84mm (D)
• Pitch: 64mm
• Finish: Satin Chrome



Lockwood Turnsnib Adaptor Assembly
3572-5250

Features:

• Suits 3572EA; 3572XA; 3572WA, 3572XT, 3572T; 3574WT; 3574EA; 3574ET; 3578WT function locks
• Adaptor locks or unlocks handle or handles, (depending on spindle hub settings)



Dormakaba Door Lever on Square End Plate Furniture
6600/30G

Features:

• A true rectangular plate displaying clean modern lines with bevelled edges
• Manufactured using hygienic and corrosion resistant
• A characteristic feature of Stainless Steel door furniture is the naturally gleaming finish
• Concealed fixed external plates with visible fixed internal plates connected with bolt through fixings
• Extensive range of optional plate functions
• Designed with bolt through the door fixing for use with the dormakaba MS2602 series mortice locks and latches
• Heavy duty spring mechanism manufactured using the highest grade materials
• Nylon bush preventing metal to metal wear and providing a smoother friction free movement with a heavy duty star spindle for positive turn actuation and furthermore provides for true installation alignment
• Compatible with all Coastal and Urban lever designs
• The 6600 series plate furniture is fire rated and complies with AS1905.1-2005 Part 1
• AS1428.1 2009 Disabled Compliant

Specifications:

• Door Thickness: 32mm to 50mm
• Height: 165mm
• Width: 45mm
• Projection: 10mm
• Material: Stainless Steel
• Fire Rated: Yes
• Finish: Satin Stainless Steel

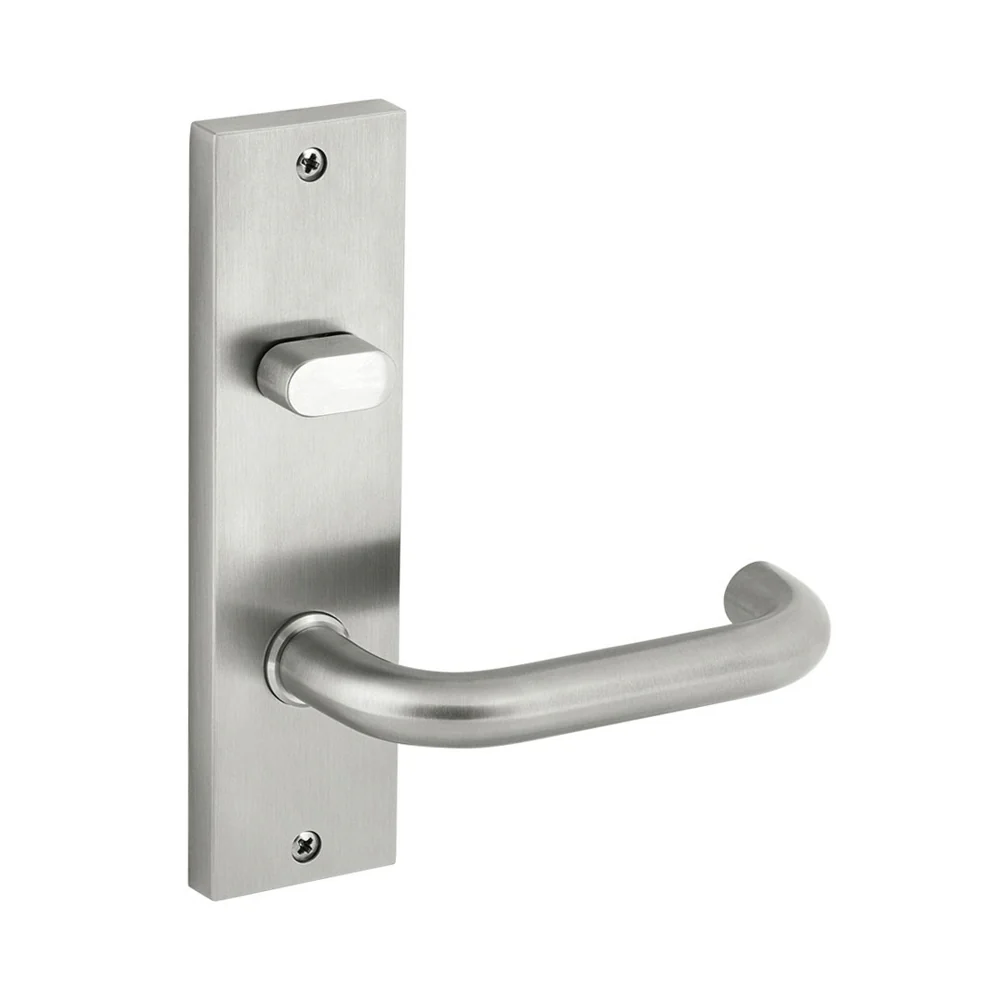

Dormakaba Lever on Square End Plate Turnsnib
DF66033001G

Features:

• Rectangular interior square end plate
• Standard turnsnib with Noosa 30 series lever
• Heavy duty spring mechanism manufactured using the highest grade materials
• Manufactured using 316 corrosion resistant solid stainless steel
• Visible fixing

Specifications:

• Door Thickness: 32-50mm
• Height: 165mm
• Width: 45mm
• Projection: 10mm
• Screw Fix Spacing: 148mm
• Finish: Satin Stainless Steel

Compliance:

• Fire Rating Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
• Disabled Compliance BCA AS1428.1 -2009 compliant leverset.

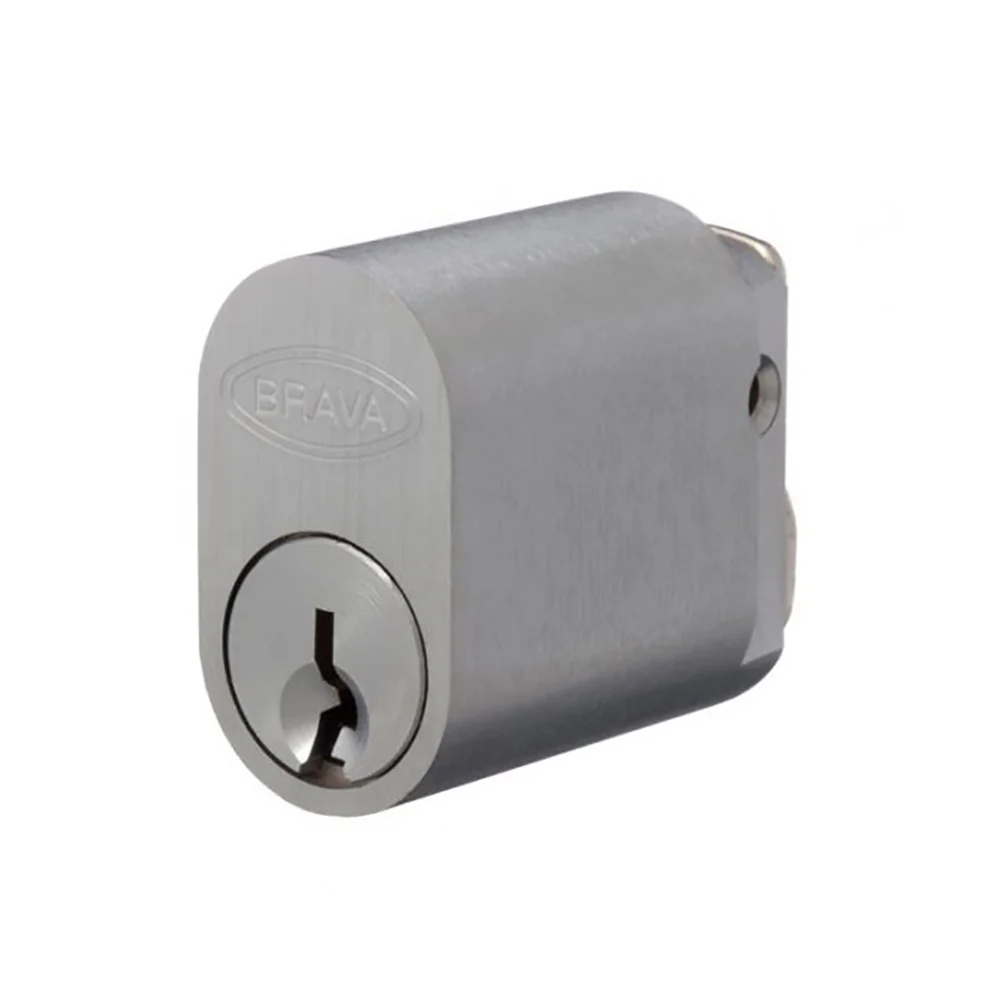

Brava 570 Oval Cylinder
5070USCKD

Features:

• Brava type 570 cylinder
• Includes X, W, Z & Rabbit Cams
• 2 keys supplied

Specifications:

• Cylinder: 6 Pin
• Keying: Keyed to Differ
• Finish: Satin Chrome
