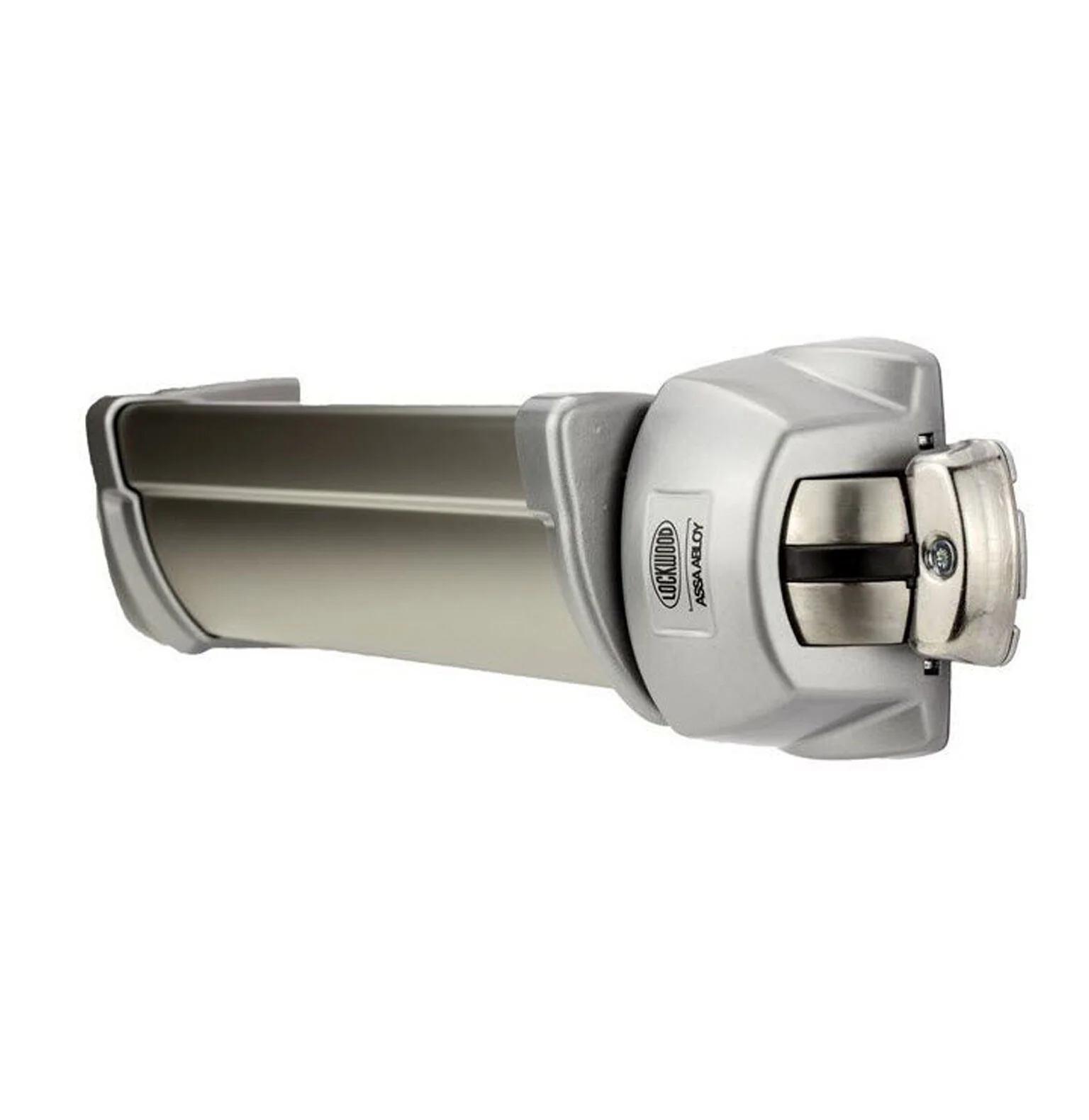

Lockwood Single Point Rim Exit Device
FE109/0HSIL

Rim Exit Device is a type of door hardware commonly used on emergency exit doors in commercial buildings.

Rim Exit Device Function - is designed for emergency situations (fire exits, panic exits), it automatically unlatches the door when pushed, no keys or levers are needed to operate from inside. Allows people to quickly and easily exit a building by simply pushing the horizontal bar, even if the door is locked from the outside.

Features:

• The next generation in the Lockwood Panic Exit Device range, the FLUID Series provides for the fundamental means of escape whilst offering a completely unique locking mechanism and design aesthetic. With this type of unique innovation, ASSA ABLOY continues to evolve in standardising the market
• The Lockwood FLUID Exit Device range combines ergonomics and performance with a completely new type of axis mechanism and high security bolt system
• The FLUID Exit Single Point Series is a one point locking device which provides for an escape function at all times by way of pushing a horizontal bar fitted to the door
• Tested to 1,000,000 cycles
• Auxiliary bolt activation from 1mm
• New fixing bracket and template design reduces installation time by up to 50%
• Cylinder dogging an optional accessory
• Protect Evacuating people safely
• Secure High vandal resistance
• Optimise. A simple and efficient installation process
• Effortless opening < 20N required
• Bar can be cut down to 350mm
• Cylinder Dogging
• The Cylinder Dogging device is a simple mechanism designed to hold the push bar in the open position
• Ideal for applications where access to the premises can be selected at any time and providing for a common thorough fare door
• With the innovative locking mechanism integral to the FLUID Exit range, the latches are always retained behind their strike plate providing a positive latched state to the door as all times
• The Cylinder Dogging option will not change the state of latch and for this reason, we are able to provide this option as successfully tested on fire doors for the first time.
• NB L9555-502 Euro Half Cylinder sold separately

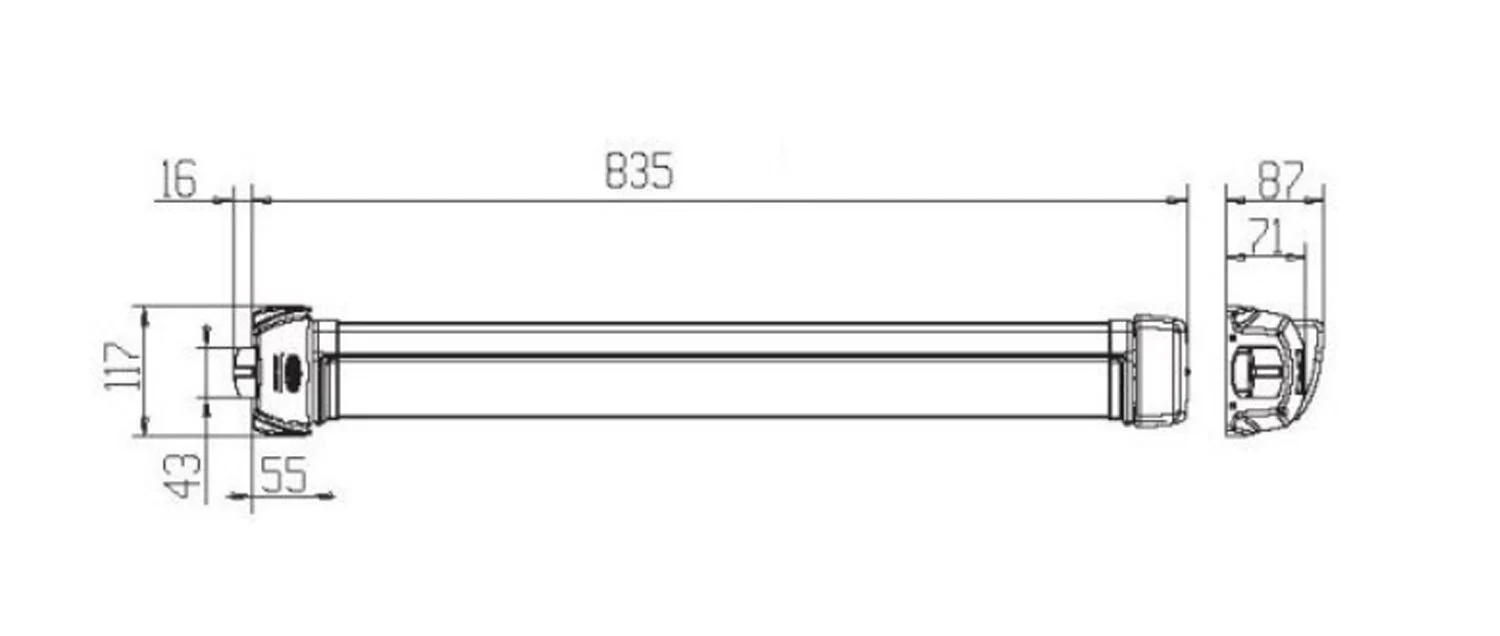

Specifications:

• Door Size: 900mm
• Bolt Finish: Brushed Stainless Steel
• Level of resistance: Up to 500kg to each latching point
• Latching Points: 1 Point
• Finish: Silver

Standards and Compliance:

• Successfully tested on fire door assemblies in accordance with Australian Standard AS1905.1-2005. Fire Resistant Doorsets.
• Conforms to the standards as set out in CE EN1125 -2008.
